TPS73433-Q1 Series

Automotive 250-mA, low-IQ, low-dropout voltage regulator with enable

Catalog

Automotive 250-mA, low-IQ, low-dropout voltage regulator with enable

Part	Current - Output	Channels per IC	Board Type	Regulator Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output [Min]	Voltage - Output [Max]	Protection Features	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Output Type	Control Features	Number of Regulators	PSRR [Max]	PSRR [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage Dropout (Max) [Max]	Output Configuration	Current - Quiescent (Iq)	Output Type	Voltage - Output (Max) [Max]	Qualification	Grade

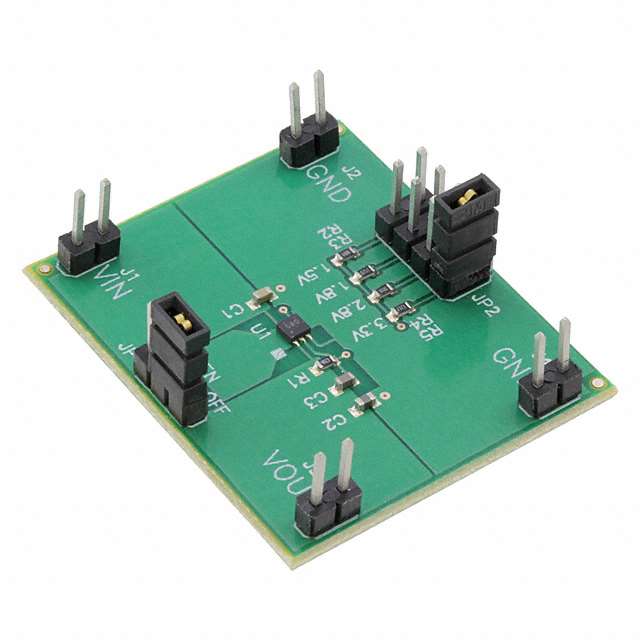

Texas Instruments TPS73401DRVEVM-527	250 mA	1 - Single	Fully Populated	Positive Adjustable	TPS73401	6.5 V	2.7 V	Board(s)	1.25 V	6.2 V
Texas Instruments TPS7348QP	500 mA										Over Current Over Temperature Reverse Polarity	10 V	Through Hole	0.3 in	8-DIP	7.62 mm	1.81 mOhm	Enable Reset	1	53 dB	50 dB	125 °C	-40 °C	550 µA	4.85 V	8-PDIP	0.15 V	Positive
Texas Instruments TPS73430DRVT	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount				1.81 mOhm	Enable	1	60 dB	28 dB	125 °C	-40 °C			6-WSON (2x2)	0.22 V	Positive	65 µA
Texas Instruments TPS73401DDCT	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount		SOT-23-5 Thin TSOT-23-5			Enable	1	60 dB	28 dB	125 °C	-40 °C		1.25 V	SOT-23-THIN	0.22 V	Positive	65 µA	Adjustable	6.2 V
Texas Instruments TPS73433DDCR	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount		SOT-23-5 Thin TSOT-23-5		1.81 mOhm	Enable	1	60 dB	28 dB	125 °C	-40 °C		3.3 V	SOT-23-THIN	0.22 V	Positive	65 µA
Texas Instruments TPS73430DRVR	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount				1.81 mOhm	Enable	1	60 dB	28 dB	125 °C	-40 °C			6-WSON (2x2)	0.22 V	Positive	65 µA
Texas Instruments TPS73433TDDCRQ1	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount		SOT-23-5 Thin TSOT-23-5		1.81 mOhm	Enable	1	60 dB	28 dB	105 ░C	-40 °C		3.3 V	SOT-23-THIN	0.22 V	Positive	65 µA			AEC-Q100	Automotive
Texas Instruments TPS73401DRVR	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount					Enable	1	60 dB	28 dB	125 °C	-40 °C		1.25 V	6-WSON (2x2)	0.22 V	Positive	65 µA	Adjustable	6.2 V
Texas Instruments TPS73433DRVT	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount				1.81 mOhm	Enable	1	60 dB	28 dB	125 °C	-40 °C		3.3 V	6-WSON (2x2)	0.22 V	Positive	65 µA
Texas Instruments TPS73418DRVT	250 mA										Over Current Over Temperature Under Voltage Lockout (UVLO)	6.5 V	Surface Mount				1.81 mOhm	Enable	1	60 dB	28 dB	125 °C	-40 °C		1.8 V	6-WSON (2x2)	0.22 V	Positive	65 µA

Catalog

Automotive 250-mA, low-IQ, low-dropout voltage regulator with enable

Key Features

• 250mA Low Dropout Regulator with ENLow IQ: 44µAMultiple Output Voltage Versions Available:Fixed Outputs of 1.0V to 4.3V Using Innovative Factory EEPROM ProgrammingAdjustable Outputs from 1.25V to 6.2VHigh PSRR: 60dB at 1kHzUltra-low Noise: 28µVRMSFast Start-Up Time: 45µsStable with a Low-ESR, 2.0µF Typical Output CapacitanceExcellent Load/Line Transient Response2% Overall Accuracy (Load/Line/Temp)Very Low Dropout: 125mV at 250mAThinSOT-23, 2mm × 2mm SON-6, and 3mm × 3mm SON-8 PackagesAPPLICATIONSWiFi, WiMaxPrintersCellular Phones, SmartPhonesHandheld Organizers, PDAsAll trademarks are the property of their respective owners.250mA Low Dropout Regulator with ENLow IQ: 44µAMultiple Output Voltage Versions Available:Fixed Outputs of 1.0V to 4.3V Using Innovative Factory EEPROM ProgrammingAdjustable Outputs from 1.25V to 6.2VHigh PSRR: 60dB at 1kHzUltra-low Noise: 28µVRMSFast Start-Up Time: 45µsStable with a Low-ESR, 2.0µF Typical Output CapacitanceExcellent Load/Line Transient Response2% Overall Accuracy (Load/Line/Temp)Very Low Dropout: 125mV at 250mAThinSOT-23, 2mm × 2mm SON-6, and 3mm × 3mm SON-8 PackagesAPPLICATIONSWiFi, WiMaxPrintersCellular Phones, SmartPhonesHandheld Organizers, PDAsAll trademarks are the property of their respective owners.

Description

The TPS734xx family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient response are provided while consuming a very low 44µA (typical) ground current. The TPS734xx is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 125mV at 250mA output. The TPS734xx uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% over all load, line, process, and temperature variations. It is fully specified from TJ= -40°C to +125°C and is offered in low-profile ThinSOT-23, 2mm × 2mm SON, and 3mm × 3mm SON packages that are ideal for wireless handsets, printers, and WLAN cards. The TPS734xx family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient response are provided while consuming a very low 44µA (typical) ground current. The TPS734xx is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 125mV at 250mA output. The TPS734xx uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% over all load, line, process, and temperature variations. It is fully specified from TJ= -40°C to +125°C and is offered in low-profile ThinSOT-23, 2mm × 2mm SON, and 3mm × 3mm SON packages that are ideal for wireless handsets, printers, and WLAN cards.
