87052 Series

Catalog

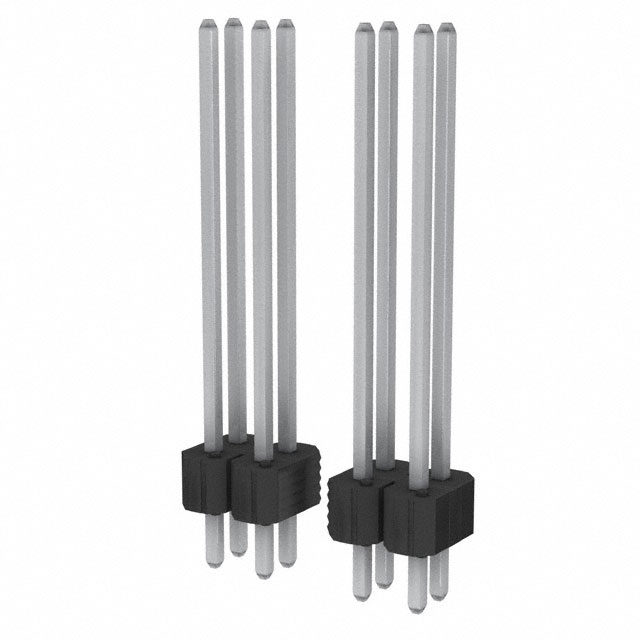

CONN HEADER VERT 44POS 2.54MM

Part	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Contact Shape	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Mating
Amphenol ICC (FCI) 87052-444HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	44	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-460HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	60	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-420HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	20	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-164HLF	110 VDC	0.76 Ám	30 Áin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	64	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull		Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded	Gold or Gold GXT™
Amphenol ICC (FCI) 87052-430HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	30	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-104HLF	110 VDC	0.76 Ám	30 Áin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	4	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull		Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded	Gold or Gold GXT™
Amphenol ICC (FCI) 87052-432HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2		2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-428HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	28	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-450HLF	110 VDC	2.54 çm	100 çin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	50	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull	Tin	Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded
Amphenol ICC (FCI) 87052-162HLF	110 VDC	0.76 Ám	30 Áin	Phosphor Bronze	All	UL94 V-0	5 A	0.1 in	2.54 mm	Header	0.12 in	3.05 mm	2	62	2.54 mm	0.1 in	Male Pin	Solder	0.1 in	2.54 mm	Push-Pull		Square	Through Hole	0.99 in	25.15 mm	Black	0.77 in	19.56 mm	Unshrouded	Gold or Gold GXT™
