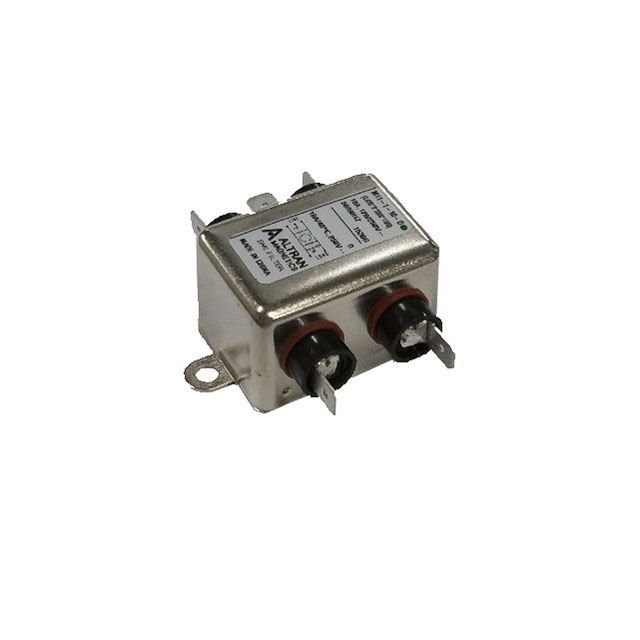

AMI-M11A Series

Catalog

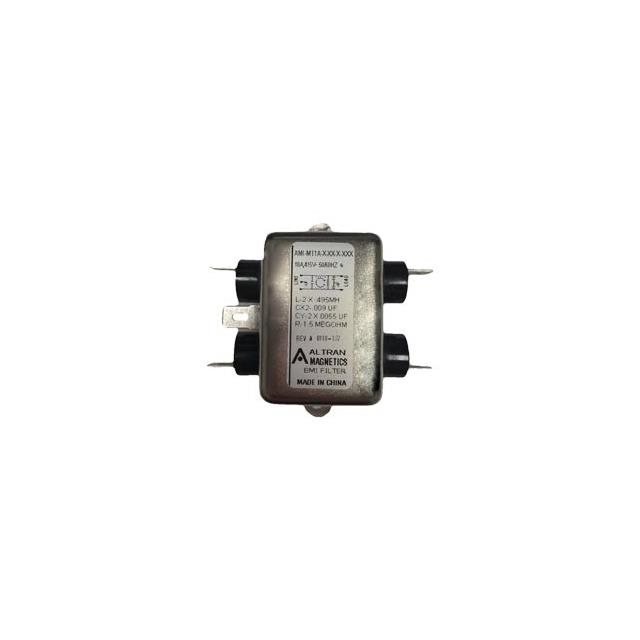

POWER LINE FILTER GENERAL PURPOSE RFI 50HZ/60HZ 5A 250VAC QUICK CONNECT CHASSIS MOUNT

Part	Inductance	Current	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Mounting Type	Voltage - Rated AC	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Applications
Altran Magnetics, LLC AMI-M11A-1-5-D	516 µH	5 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-1-1-B	1.86 mH	1 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-1-5-B	500 µH	5 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-6-20-D	440 µH	20 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-3-10-B	495 µH	10 A	Single Phase	60 Hz	50 Hz	Wire Leads	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-1-2-D	539 µH	2 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-3-1-B	1.86 mH	1 A	Single Phase	60 Hz	50 Hz	Wire Leads	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-3-3-D	1.76 mH	3 A	Single Phase	60 Hz	50 Hz	Wire Leads	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-3-5-D	516 µH	5 A	Single Phase	60 Hz	50 Hz	Wire Leads	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
Altran Magnetics, LLC AMI-M11A-1-20-B	440 µH	20 A	Single Phase	60 Hz	50 Hz	Quick Connect	Chassis Mount	250 V	Single Stage	40 °C	-10 °C	General Purpose
