2314824 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,B-B,REC,DRVT,2.7,0.1AU,T

Part	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Fastening Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Features	Contact Type	Insulation Color	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Finish - Mating	Contact Finish - Post	Contact Shape

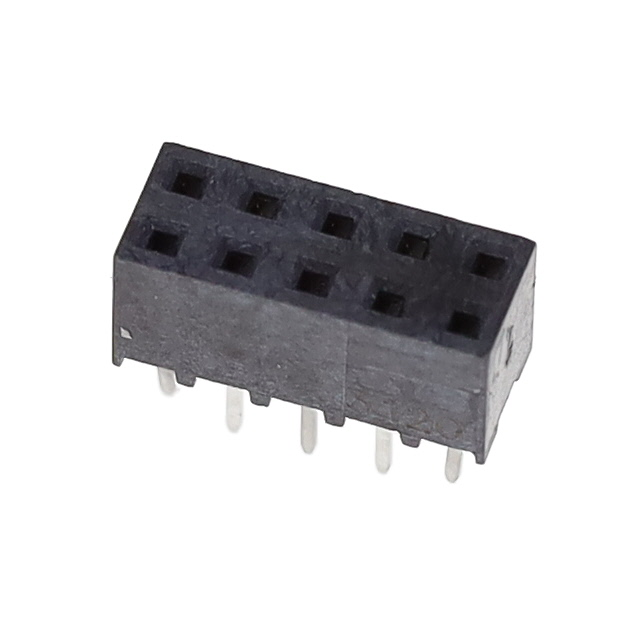

TE Connectivity Raychem Cable Protection 1-2314824-0	All	0.079 in	2 mm	10	3.94 µin	0.1 µm	125 VDC	125 °C	-40 °C	Phosphor Bronze	2 A	0.177 in	4.5 mm	Through Hole	0.3 µm	12 µin	UL94 V-0	Push-Pull	2	0.106 in	2.69 mm	Solder	Pick and Place	Female Socket	Black	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Receptacle	Gold	Tin	Square

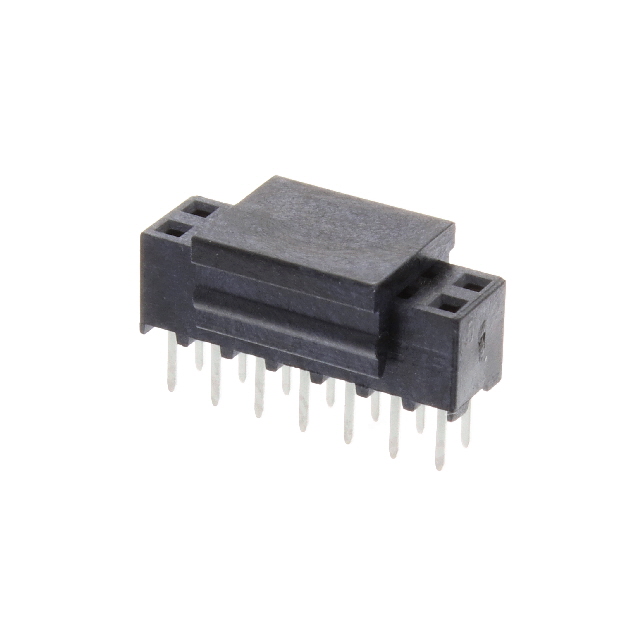

TE Connectivity Raychem Cable Protection 1-2314824-4	All	0.079 in	2 mm	14	3.94 µin	0.1 µm	125 VDC	125 °C	-40 °C	Phosphor Bronze	2 A	0.177 in	4.5 mm	Through Hole	0.3 µm	12 µin	UL94 V-0	Push-Pull	2	0.106 in	2.69 mm	Solder	Pick and Place	Female Socket	Black	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Receptacle	Gold	Tin	Square

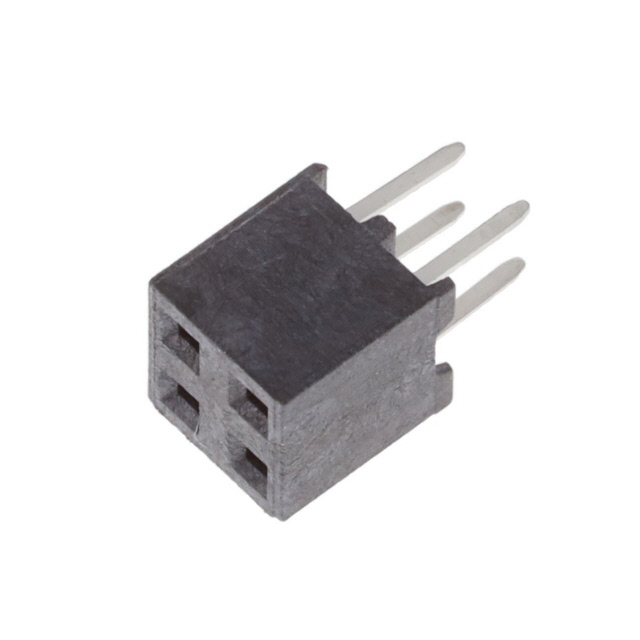

TE Connectivity Raychem Cable Protection 2314824-4	All	0.079 in	2 mm	4	3.94 µin	0.1 µm	125 VDC	125 °C	-40 °C	Phosphor Bronze	2 A	0.177 in	4.5 mm	Through Hole	0.3 µm	12 µin	UL94 V-0	Push-Pull	2	0.106 in	2.69 mm	Solder	Pick and Place	Female Socket	Black	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Receptacle	Gold	Tin	Square

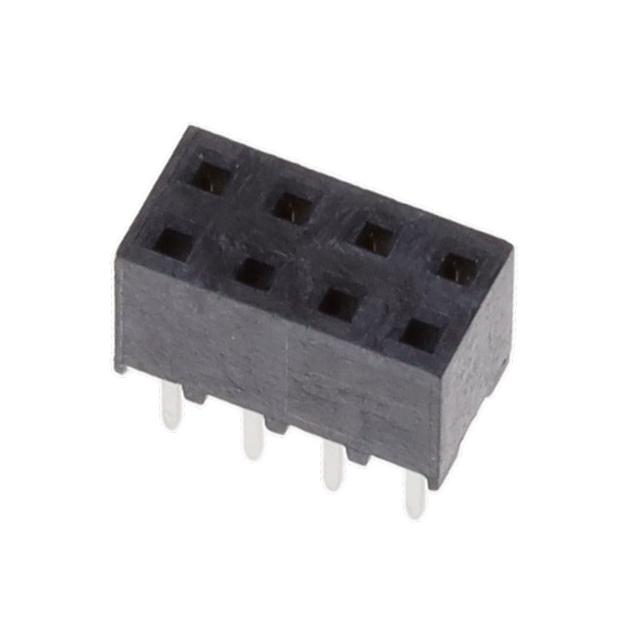

TE Connectivity Raychem Cable Protection 2314824-8	All	0.079 in	2 mm	8	3.94 µin	0.1 µm	125 VDC	125 °C	-40 °C	Phosphor Bronze	2 A	0.177 in	4.5 mm	Through Hole	3 µm	118.1 µin	UL94 V-0	Push-Pull	2	0.106 in	2.69 mm	Solder	Pick and Place	Female Socket	Black	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Receptacle	Gold	Tin	Square

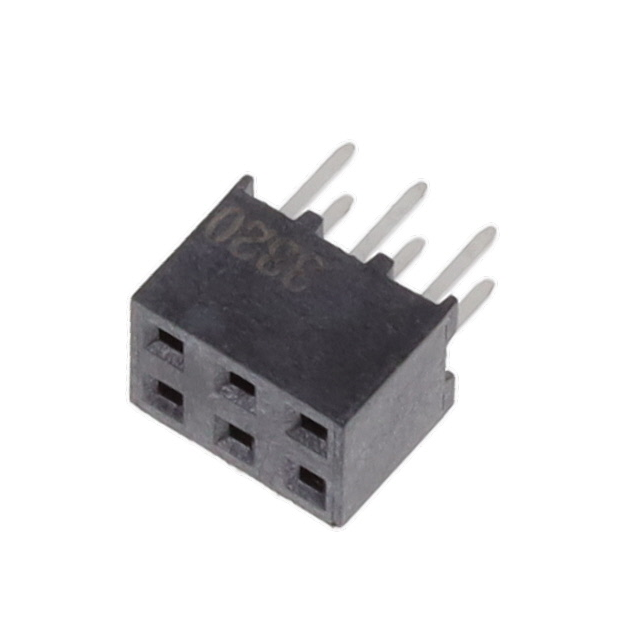

TE Connectivity Raychem Cable Protection 2314824-6	All	0.079 in	2 mm	6	3.94 µin	0.1 µm	125 VDC	125 °C	-40 °C	Phosphor Bronze	2 A	0.177 in	4.5 mm	Through Hole	3 µm	118.1 µin	UL94 V-0	Push-Pull	2	0.106 in	2.69 mm	Solder	Pick and Place	Female Socket	Black	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Receptacle	Gold	Tin	Square
