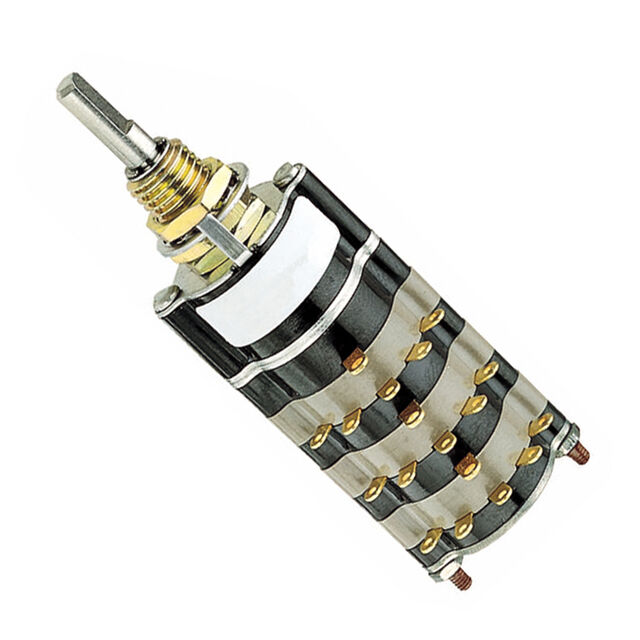

08A36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2POS 250MA 115V
| Part | Actuator Type | Index Stops | Contact Timing | Number of Positions | Contact Material | Circuit per Deck | Termination Style | Actuator Length [x] | Voltage Rating - AC | Mounting Type | Number of Decks | Contact Finish | Number of Poles per Deck | Voltage Rating - DC | Angle of Throw | Depth Behind Panel [custom] | Current Rating (Amps) | Depth Behind Panel [z] | Number of Decks [custom] | Number of Decks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 2 | Silver Alloy | DPDT | Solder Lug | 9.53 mm | 115 V | Panel Mount | 2 | Gold | 2 | 28 V | 36 ° | 31.19 mm | 250 mA | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | Silver Alloy | DP3T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 4 | Gold | 2 | 28 V | 36 ° | 250 mA | 44.81 mm | ||||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 6 | Silver Alloy | SP6T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 2 | Gold | 1 | 28 V | 36 ° | 31.19 mm | 250 mA | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 5 | Silver Alloy | SP5T | Solder Lug | 9.53 mm | 115 V | Panel Mount | Gold | 1 | 28 V | 36 ° | 250 mA | 24.38 mm | 1 | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | Silver Alloy | DP3T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 3 | Gold | 2 | 28 V | 36 ° | 250 mA | 38 mm | ||||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 4 | Silver Alloy | SP4T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 2 | Gold | 1 | 28 V | 36 ° | 31.19 mm | 250 mA | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 8 | Silver Alloy | SP8T | Solder Lug | 9.53 mm | 115 V | Panel Mount | Gold | 1 | 28 V | 36 ° | 250 mA | 91 mm | 10 | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 4 | Silver Alloy | DP4T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 4 | Gold | 2 | 28 V | 36 ° | 250 mA | 44.81 mm | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | 2 | Silver Alloy | SPDT | Solder Lug | 9.53 mm | 115 V | Panel Mount | Gold | 1 | 28 V | 36 ° | 250 mA | 24.38 mm | 1 | |||
Grayhill Inc. | Flatted (3.17mm Dia) | Fixed | Non-Shorting (BBM) | Silver Alloy | SP3T | Solder Lug | 9.53 mm | 115 V | Panel Mount | 2 | Gold | 1 | 28 V | 36 ° | 31.19 mm | 250 mA |
