053259 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 13POS 3.5MM

Part	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Features	Number of Rows	Connector Type	Insulation Material	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Contact Type	Style	Shrouding	Contact Shape	Number of Positions	Contact Material
Molex 0532591329	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	13	Brass
Molex 0532590429	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	4	Brass
Molex 0532591229	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	12	Brass

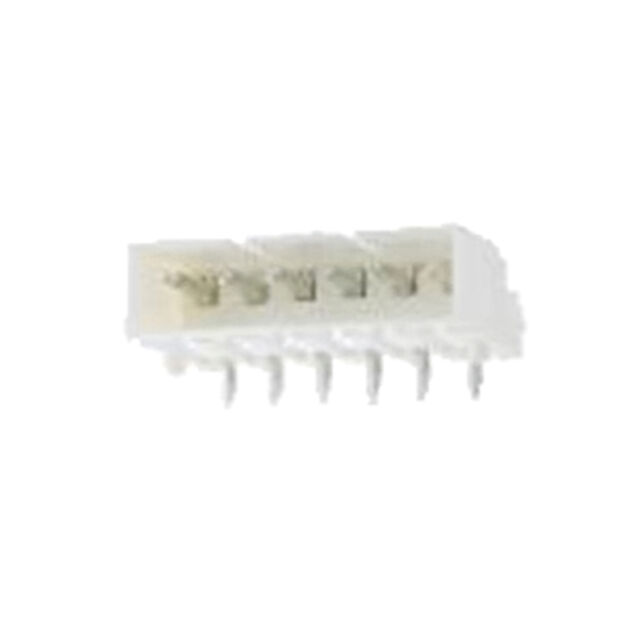

Molex 0532591129	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	11	Brass

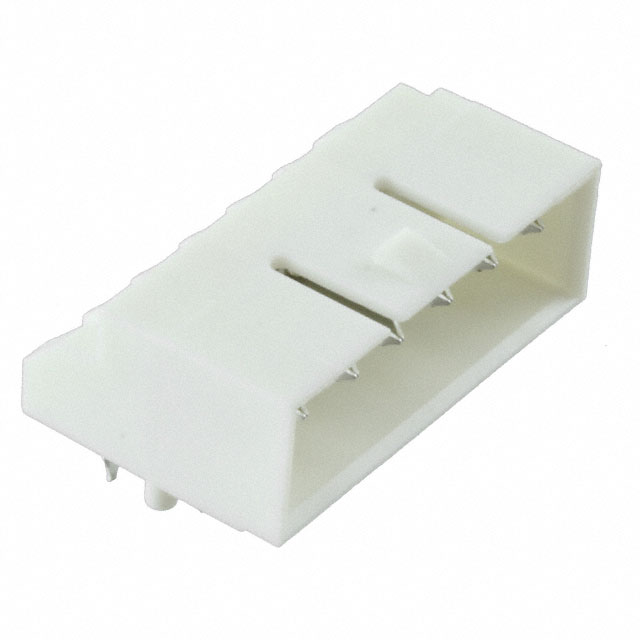

Molex 0532590629	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	6	Brass
Molex 0532590210
Molex 0532590729	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	7	Brass

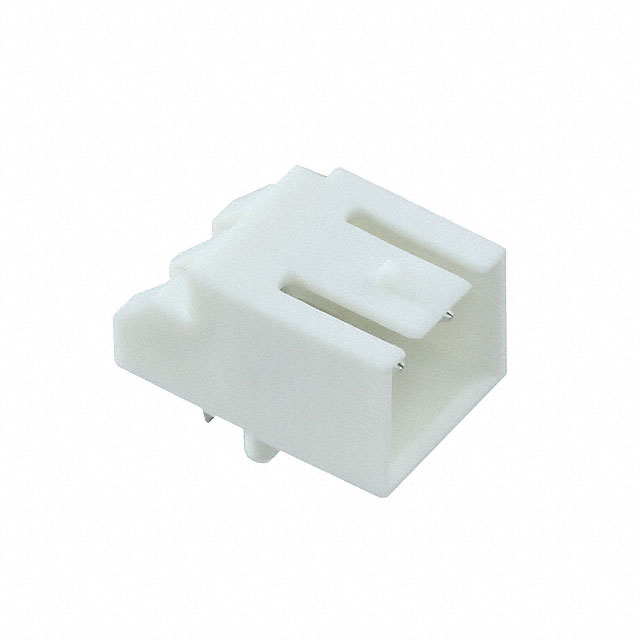

Molex 0532590229	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	2	Brass
Molex 0532591429	Through Hole Right Angle	Tin	3.5 mm	0.138 in	0.311 in	7.9 mm	0.138 in	3.5 mm	Board Guide	1	Header	Polybutylene Terephthalate (PBTP)	Solder	UL94 V-0	1 µm	39.4 µin	Locking Ramp	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Square	14	Brass
Molex 0532590220
