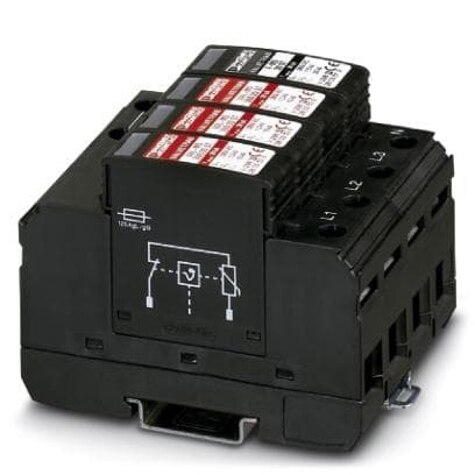

Surge Suppressors VAL-MS 350/20/3+1
Surge Suppressors VAL-MS 350/20/3+1
| Part | Voltage - Continuous Operating (Max) (MCOV) [Max] | Type | Approval Agency | Number of Poles | Voltage - Protection Level (VP) (2416) | Current - Discharge (Max) (8/20µS) [Max] | Mounting Type | Form | Current - Short Circuit Rating (SCCR) | Current - Discharge (Nom) (8/20µS) | Operating Temperature [Max] | Operating Temperature [Min] | Overload Protection | AC Outlets | Connector - AC Input | Connector - AC Output | Region Utilized | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 320 VAC | Type 2 | CB CCA cUL cULus EAC GL KEMA-KEUR OVE UL | 1 | 1.5 kV | 40 kA | Base Mount | Module Only | 25 kA | 20 kA | 80 °C | -40 C | ||||||
 Phoenix Contact | 350 VAC | Type 2 | CB CCA CE GOST KEMA OVE | 3 | 1.5 kV | 30 kA | DIN Rail | Base + Module | 20 kA | 80 °C | -40 C | None | None | Screw Terminals | Screw Terminals | International | Remote Signaling Contacts Visual Life Indicator |
