LCA400 Series

Catalog

LUG TERMINAL, BLANK TONGUE, PAN-LUG LCA SERIES, CRIMP, COMPRESSION LUG

Part	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Insulation	Termination	Terminal Type	Color	Wire Gauge	Tab Thickness	Tab Thickness	Terminal Style	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Stud/Tab Size	Diameter - Ring ID	Diameter - Ring ID

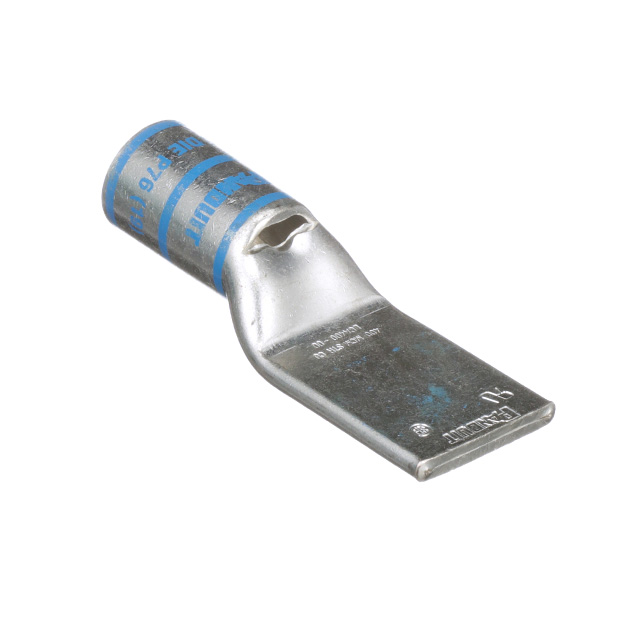

Panduit Corp LCA400-00-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm	3.81 in	96.77 mm	Free Hanging (In-Line)	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	No Stud Hole

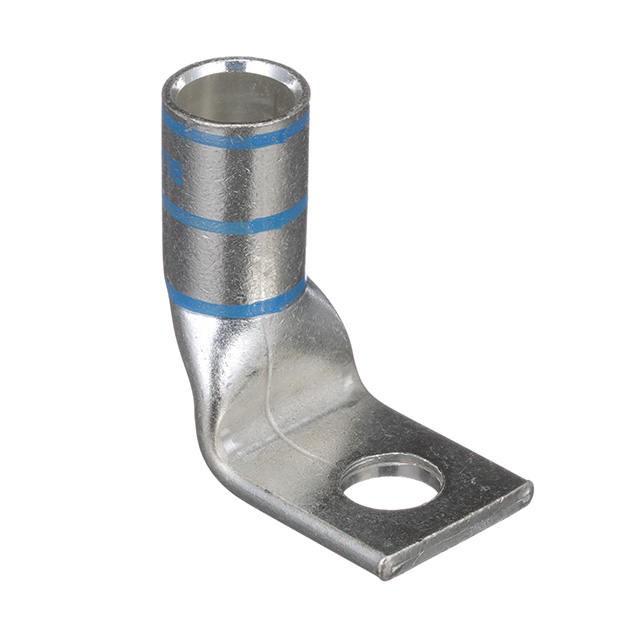

Panduit Corp LCA400-58F-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm			Free Hanging (In-Line) Right Angle	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	Single Stud Hole	16.76 mm	0.66 in	0.625 Stud

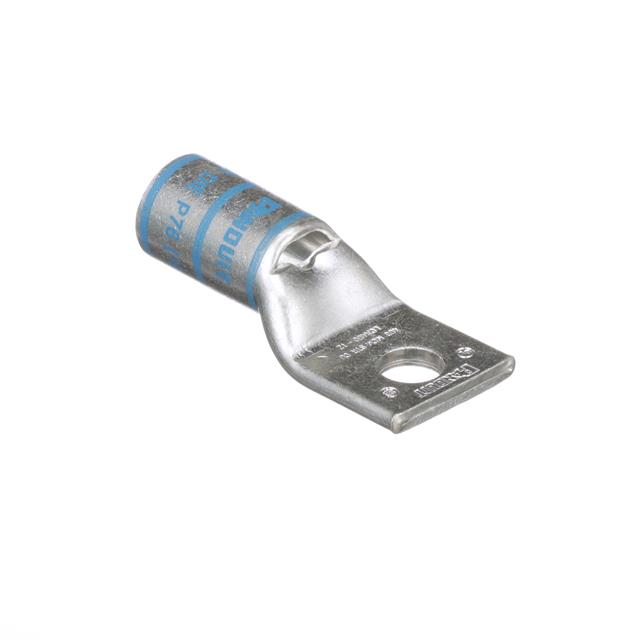

Panduit Corp LCA400-12-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm	3.21 in	81.53 mm	Free Hanging (In-Line)	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	Single Stud Hole			0.5 Stud	13.46 mm	0.53 in
Panduit Corp LCA400-38-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm	3.21 in	81.53 mm	Free Hanging (In-Line)	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	Single Stud Hole	10.41 mm	0.41 "	0.375 Stud
Panduit Corp LCA400-58-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm	3.42 in	86.87 mm	Free Hanging (In-Line)	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	Single Stud Hole	16.76 mm	0.66 in	0.625 Stud

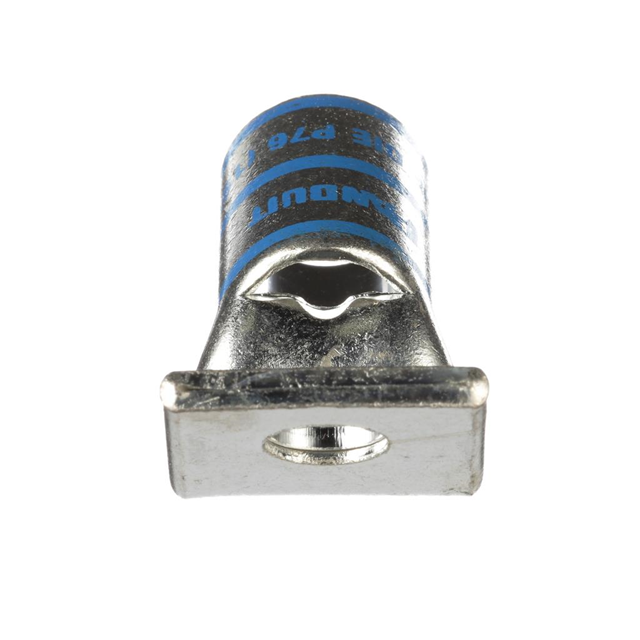

Panduit Corp LCA400-12H-6	0.95 in	24.13 mm	Electro-Tin	Copper	19.3 mm	0.76 in	1.39 "	35.31 mm			Free Hanging (In-Line)	Non-Insulated	Barrel Crimp	Rectangular Tongue	Blue	400 MCM	0.18 in	4.57 mm	Single Stud Hole			0.5 Stud	13.46 mm	0.53 in
