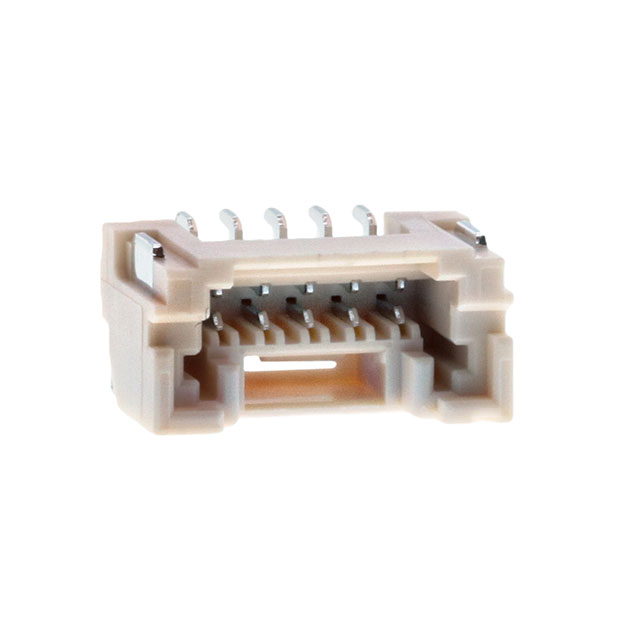

SM05B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 5POS 1.5MM
| Part | Voltage Rating | Fastening Type | Insulation Color | Number of Positions Loaded | Connector Type | Features | Contact Type | Material Flammability Rating | Number of Rows | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Insulation Material | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Termination | Style | Contact Shape | Contact Material | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 100 V | Locking Ramp | Natural | All | Header | Solder Retention | Outer Shroud Contact | UL94 V-0 | 1 | Right Angle Surface Mount | 85 °C | -25 °C | Shrouded - 4 Wall | Nylon Polyamide (PA) | Tin | 0.228 " | 5.8 mm | Solder | Board to Cable/Wire | Rectangular | Copper Alloy | 2 A | 5 |
