LB25WKW Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Actuator Marking	Ingress Protection	Illumination Type, Color	Actuator Type	Termination Style	Current Rating (Amps)	Circuit	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination Voltage (Nominal)	Voltage Rating - DC

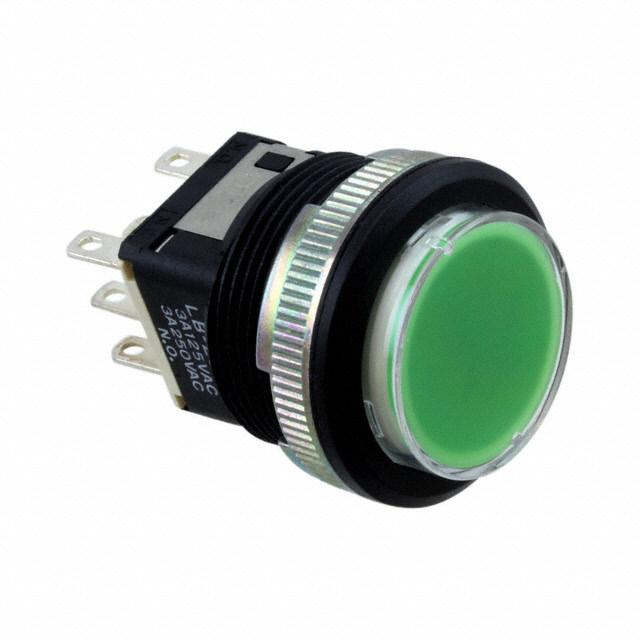

NKK Switches LB25WKW01-5F-JF	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Green LED	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	2.1 VDC	30 V

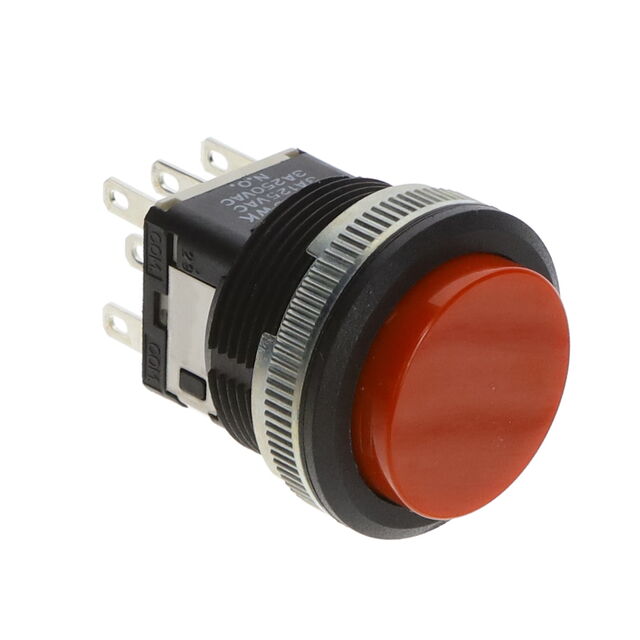

NKK Switches LB25WKW01-CJ	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant		Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Red	Panel Mount Front	125 V	Standard	70 °C	-25 °C	On-Mom		30 V
NKK Switches LB25WKW01-5D-JD	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Amber LED	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	2 VDC	30 V
NKK Switches LB25WKW01-6G-JB	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Blue LED	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	3.6 VDC	30 V
NKK Switches LB25WKW01-5D12-JB	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Amber LED	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	12 VDC	30 V

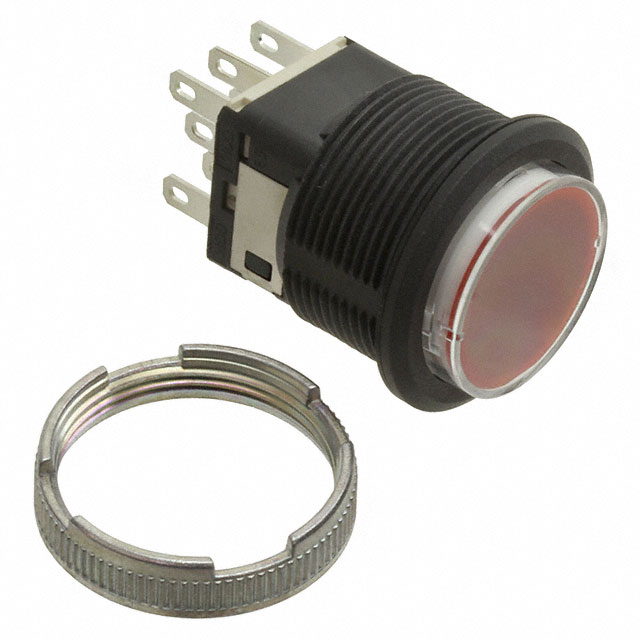

NKK Switches LB25WKW01-5C-JC	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	LED Red	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	1.9 VDC	30 V
NKK Switches LB25WKW01-01-JC	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Neon Red	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	110 VAC	30 V
NKK Switches LB25WKW01-5D24-JD	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	Amber LED	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	24 V	30 V
NKK Switches LB25WKW01-EJ	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant		Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Yellow	Panel Mount Front	125 V	Standard	70 °C	-25 °C	On-Mom		30 V
NKK Switches LB25WKW01-5C12-JC	1000000 Cycles	100000 Cycles	No Marking	IP65 - Dust Tight Water Resistant	LED Red	Button Round	Solder Quick Connect - 0.110" (2.8mm)	3 A	DPDT	22 mm	Clear	Panel Mount Front	125 V	Illuminated Standard	50 °C	-25 °C	On-Mom	12 VDC	30 V
