G41M07-P Series
Manufacturer: ODU
Beta
⌘K

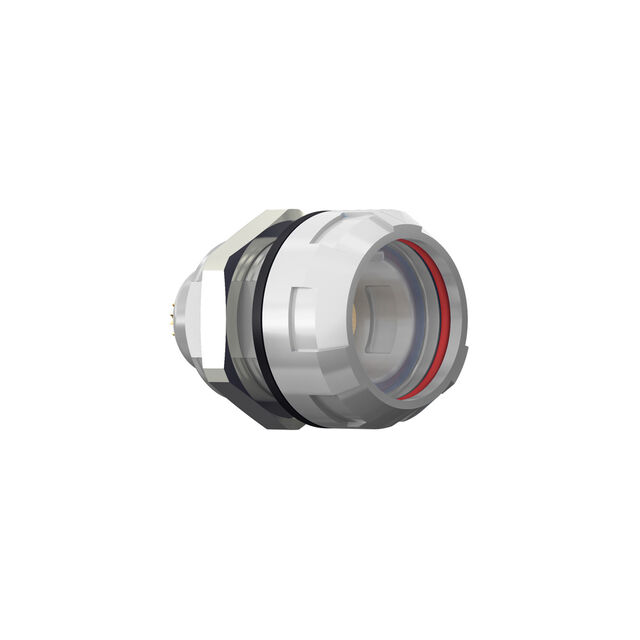

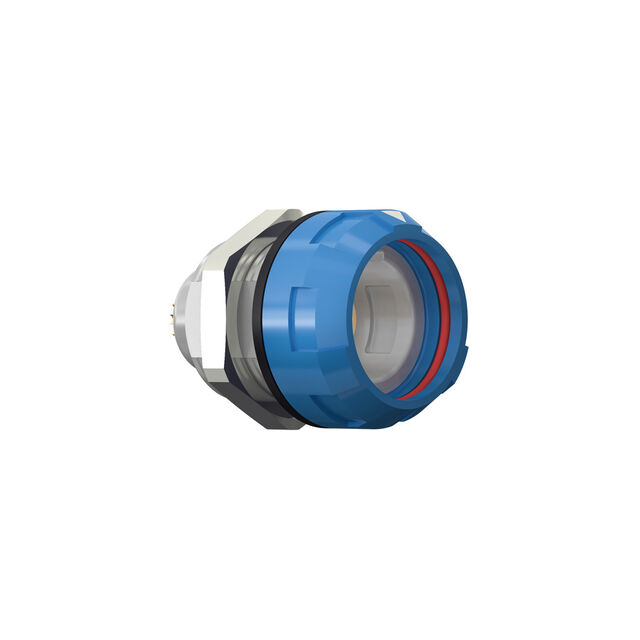

ODU MEDI-SNAP RECEPT, STY 4, SZ
| Part | Material Flammability Rating | Number of Positions | Mounting Type | Shielding | Primary Material | Connector Type | Insert Material | Shell Size - Insert | Color | Ingress Protection | Shell Material | Contact Finish - Mating | Fastening Type | Orientation | Voltage Rating | Contact Material | Mounting Feature | Current Rating (Amps) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-0 | 7 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 33 V | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | 4 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Blue Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 48 VDC | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | 2 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 38 V | Brass | Bulkhead - Rear Side Nut | 15 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | 4 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 48 VDC | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | 5 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Blue Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 35 V | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 230 V | Brass | Bulkhead - Rear Side Nut | 10 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||||
UL94 V-0 | 5 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Gray White | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 35 V | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | ||
UL94 V-0 | 8 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 32 V | Brass | Bulkhead - Rear Side Nut | 6 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | |||
UL94 V-0 | 6 | Panel Mount Through Hole | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 36 VDC | Brass | Bulkhead - Rear Side Nut | 6 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C | Solder | ||
UL94 V-0 | 7 | Panel Mount | Unshielded | Plastic | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 1 | Blue Gray | IP64/IP67 | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | 0 | 33 V | Brass | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Testing Equipment & Measurement | 120 °C | -50 °C |
