225092 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

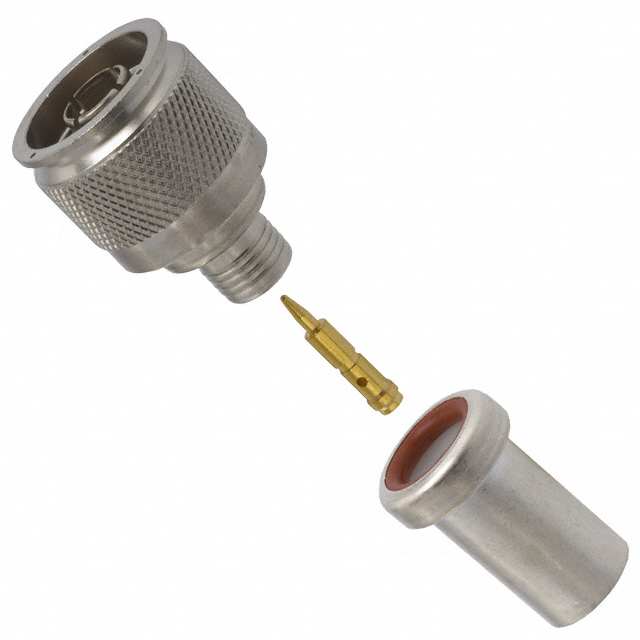

CONN N PLUG STR 50 OHM CRIMP
| Part | Center Contact Material | Connector Style | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Mating Cycles | Ingress Protection | Dielectric Material | Connector Type | Mounting Type | Contact Termination | Voltage Rating | Number of Ports | Center Contact Plating | Frequency - Max [Max] | Cable Group | Impedance | Includes | Body Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Brass | N Type | Silver | -65 ░C | 165 °C | Crimp | 500 | Weatherproof | Polytetrafluoroethylene (PTFE) | Male Pin Plug | Free Hanging (In-Line) | Crimp | 1000 VDC | 1 | Gold | 11 GHz | RG-393 | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | Brass | Silver |
TE Connectivity Aerospace, Defense and Marine | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine | Brass | N Type | Silver | -65 ░C | 165 °C | Crimp | 500 | Weatherproof | Polytetrafluoroethylene (PTFE) | Male Pin Plug | Free Hanging (In-Line) | Crimp | 1000 VDC | 1 | Gold | 11 GHz | RG-214 | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | Brass | Silver |
