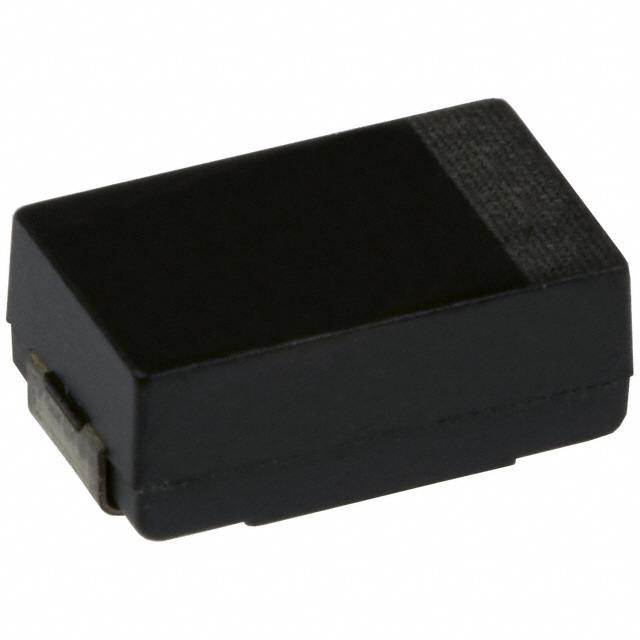

EEF-SD Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM POLY 270UF 20% 2V SMD
| Part | Applications | Voltage - Rated | Type | Ripple Current @ High Frequency | Capacitance | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 270 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2.5 V | Polymer | 3.5 A | 220 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 330 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 6.3 V | Polymer | 3.5 A | 120 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 4 V | Polymer | 3.5 A | 150 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 4 V | Polymer | 3.5 A | 150 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 330 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 390 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 390 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
Panasonic Industrial Automation Sales | General Purpose | 2 VDC | Polymer | 3.5 A | 270 µF | 20 % | -40 °C | 105 ░C | 1000 Hrs | 7 mOhms | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | Surface Mount |
