1577618 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

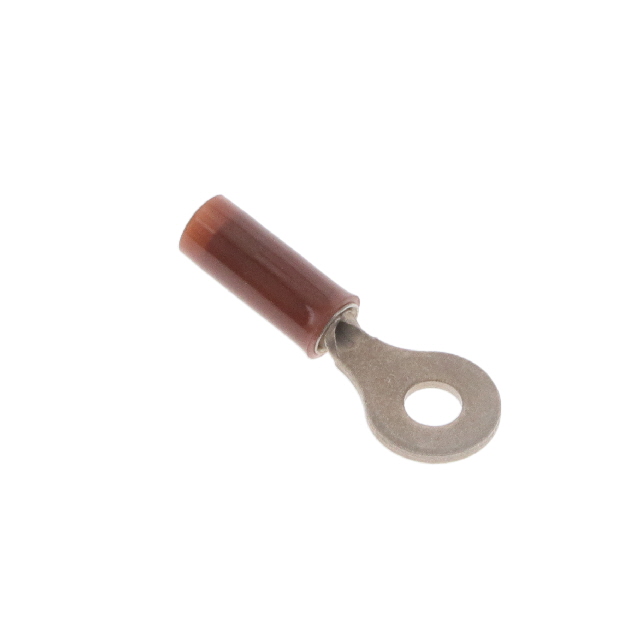

CONN RING CIRC 22-24AWG #4 CRIMP
| Part | Contact Material | Stud/Tab Size | Features | Thickness | Thickness | Material - Insulation | Termination | Insulation Diameter | Insulation Diameter [Min] | Insulation Diameter [Max] | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Contact Finish | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Color | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper | 4 Stud | Serrated Termination | 0.81 mm | 0.032 in | Polyetheretherketone (PEEK) | Crimp | 0.89 mm 1.91 mm | 0.035 in | 0.075 in | Circular | 7.14 mm | 0.281 in | Free Hanging (In-Line) | Nickel | Insulated | 24 AWG | 22 AWG | Brown | 0.839 " | 21.3 mm |
