3425L200/60 Series

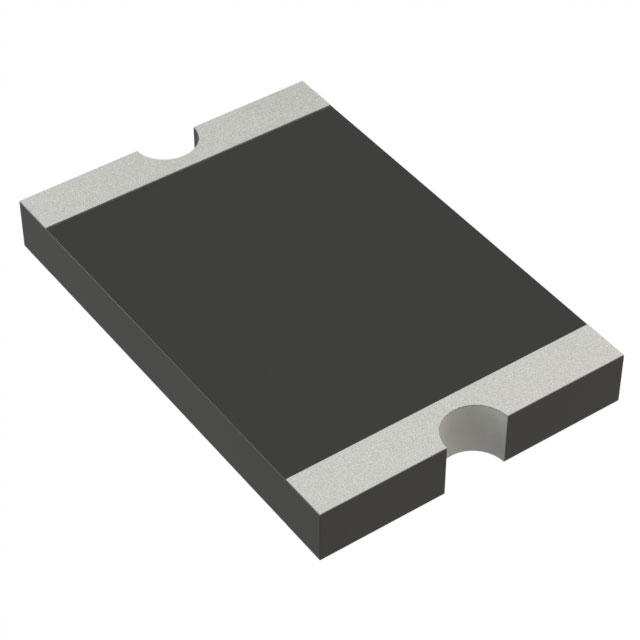

PTC 60V POLYFUSE SURF MOUNT 3425 2.0A

Catalog

PTC 60V POLYFUSE SURF MOUNT 3425 2.0A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Resistance - Post Trip (R1) (Max)	Current - Max [Max]	Thickness (Max) [Max]	Thickness (Max)	Type	Package / Case	Current - Hold (Ih) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Initial (Ri) (Min) [Min]	Voltage - Max [Max]	Approval Agency
Littelfuse/Commercial Vehicle Products 3425L200/60MR	85 °C	-40 °C	Surface Mount	200 mOhms	20 A	0.071 "	1.8 mm	Polymeric	Nonstandard SMD	2 A	8.65 mm	0.25 in	6.35 mm	0.341 in	40 mOhms	60 V	cURus TUV

PTC 60V POLYFUSE SURF MOUNT 3425 2.0A

• Lead-free and RoHS compliant

• Halogen-free

• High voltage

• Low profile

• Fast response to fault current

Littelfuse 3425L Series PPTC provides surface mount overcurrent protection for high voltage applications where resettable protection is desired.
