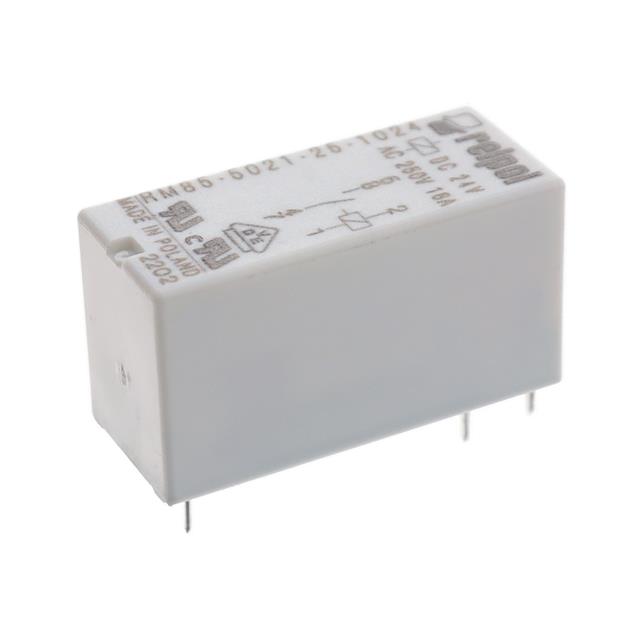

RM85-5021 Series
Manufacturer: Altech Corporation
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 6V
| Part | Coil Resistance | Form A Count | Contact Form | Seal Rating | Operating Temperature (Min) | Operating Temperature (Max) | Release Time | Contact Rating (Current) | Approval Agency | Contact Material | Relay Type | Load - Max Switching (Apparent Power) | Must Operate Voltage | Coil Current | Termination Style | Coil Type | Switching Voltage AC (Max) | Operate Time | Mounting Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 90 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 4.2 VAC | 66.7 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 6 VAC |
Altech Corporation | 60 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 3.5 VDC | 83.3 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 5 V |
Altech Corporation | 7500 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 42 VDC | 8 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 60 VDC |
Altech Corporation | 200 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 6.3 VDC | 45 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 9 VDC |
Altech Corporation | 5.7 kOhms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 33.6 VAC | 8.4 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 48 V |
 Altech Corporation | 1440 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 16.8 VDC | 16.7 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 24 VDC |
Altech Corporation | 25.2 kOhms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 77 VAC | 4.4 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 110 V |
Altech Corporation | 360 Ohms | 1 | SPST-NO | Flux Protection Sealed | -40 °C | 85 °C | 3 ms | 16 A | CCC CE CSA UR VDE | Silver Nickel (AgNi) | General Purpose | 7040 VA | 8.4 VAC | 33.3 mA | PC Pin | Non Latching | 440 VAC | 7 ms | Through Hole | 12 VAC |
