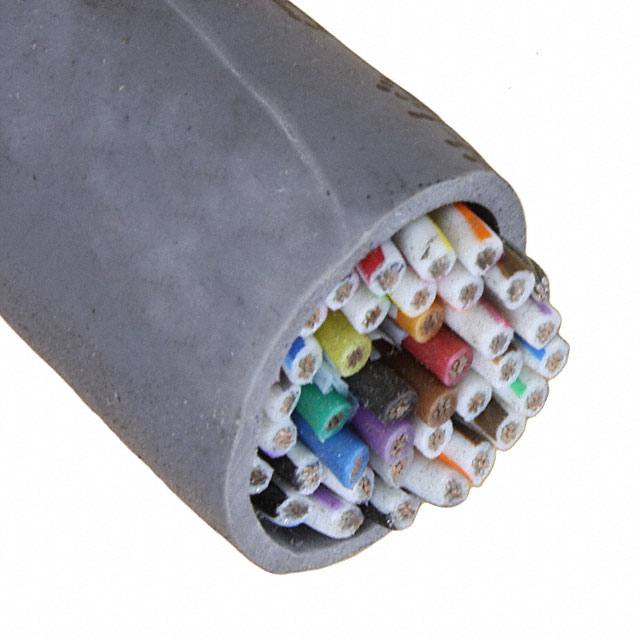

5170/40C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 40COND 18AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Voltage | Jacket (Insulation) Material | Shield Type | Cable Type | Usage | Features | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | 16 | 30 AWG | Slate | 0.053 " | 1.346 mm | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | Communication Control | Biological Compatibility Drain Wire Rip Cord | 18 AWG | 40 | 18.34 mm | 0.722 in | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | 16 | 30 AWG | Slate | 0.053 " | 1.346 mm | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | Communication Control | Biological Compatibility Drain Wire Rip Cord | 18 AWG | 40 | 18.34 mm | 0.722 in | 304.8 m | 1000 ft |
