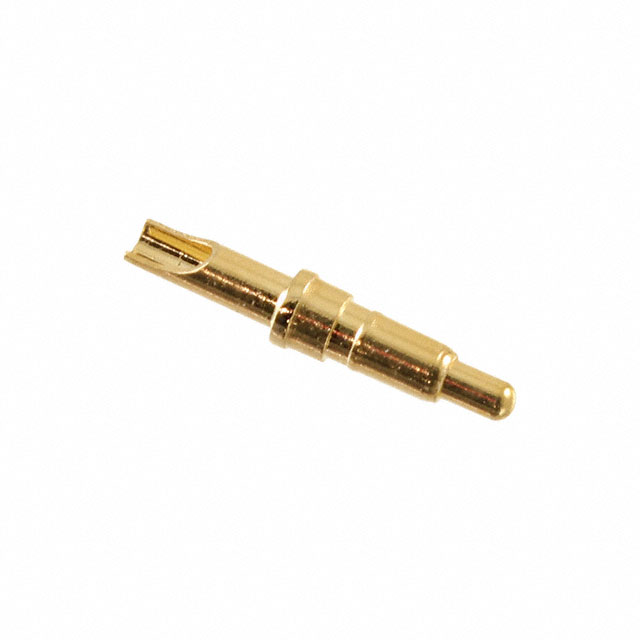

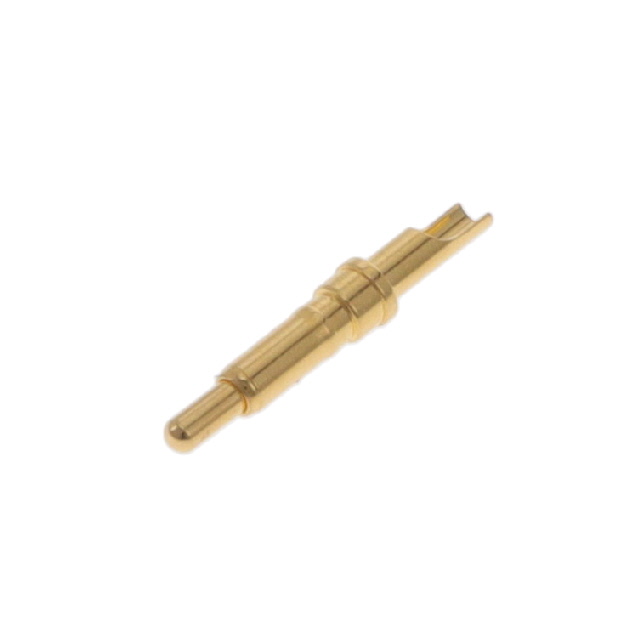

PH-MVS-53 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Mating Cycles | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Initial | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Contact Material | Minimum Working Height | Minimum Working Height | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -55 C | 125 °C | 0.079 in | 2 mm | Solder Cup Through Hole | 1000000 | Sleeve & Plunger (Pogo Pins) | 0.276 in | 7 mm | 70 gf | Gold | 1 mm | 0.039 in | 3 A | Brass | 5.6 mm | 0.22 in | 0.236 in | 6 mm |
 Adam Tech | -55 C | 125 °C | 0.079 in | 2 mm | Solder Cup Through Hole | 1000000 | Sleeve & Plunger (Pogo Pins) | 0.295 in | 7.49 mm | 70 gf | Gold | 1 mm | 0.039 in | 3 A | Brass | 6.1 mm | 0.24 in | 0.256 " | 6.5 mm |
