09200031 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, PG11 TOP ENTRY, 2 PEGS, FOR HAN-BRID®, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Thread Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Style	Connector Type	Housing Finish	Size	Features

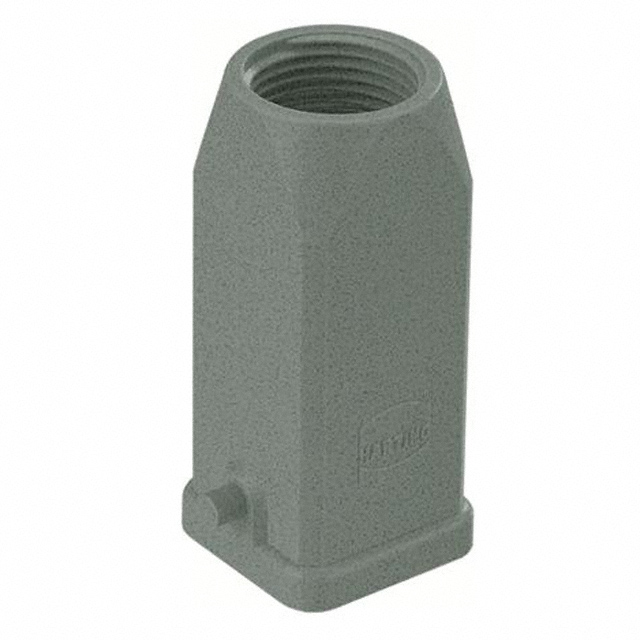

HARTING 09200031443	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	1.063 in	27 mm	60 mm	1.102 "	28 mm	2.362 in	Locking Clip (1) on Base Bottom	Top Entry	Hood	Powder Coated	3 A

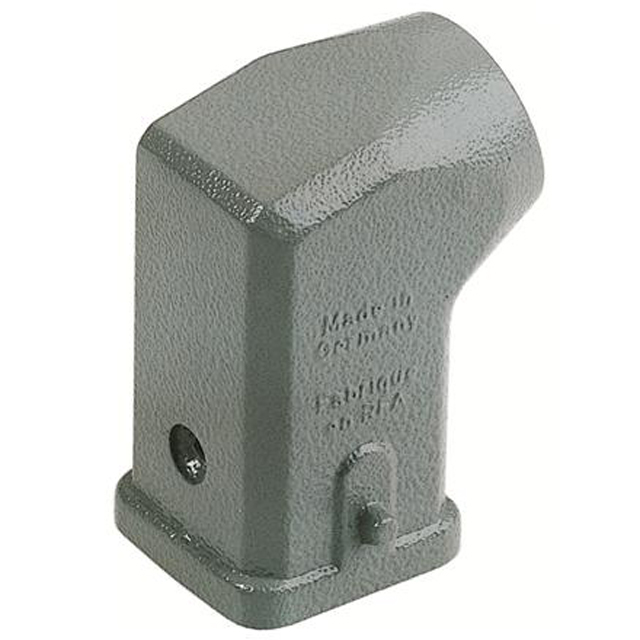

HARTING 09200031640	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	1.063 in	27 mm	54.4 mm	1.102 "	28 mm	2.142 in	Locking Clip (1) on Base Bottom	Side Entry	Hood - 90°	Powder Coated	3 A
HARTING 09200031221	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	1.102 "	28 mm	27.2 mm	1.575 "	40 mm	1.071 in	Locking Clip (1) on Base Bottom	Side Entry	Base - Panel Mount 90°	Powder Coated	3 A

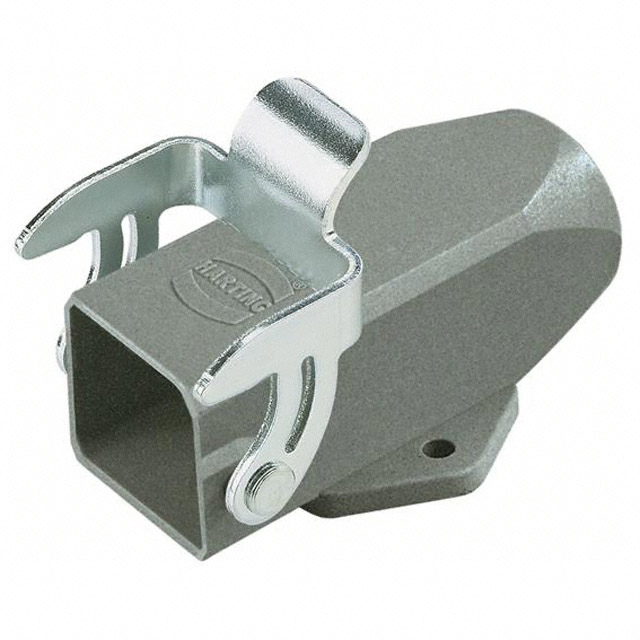

HARTING 09200031252	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	1.102 "	28 mm	27.2 mm	1.575 "	40 mm	1.071 in	Locking Clip (1) on Base Bottom	Side Entry	Base - Panel Mount 90°	Powder Coated	3 A

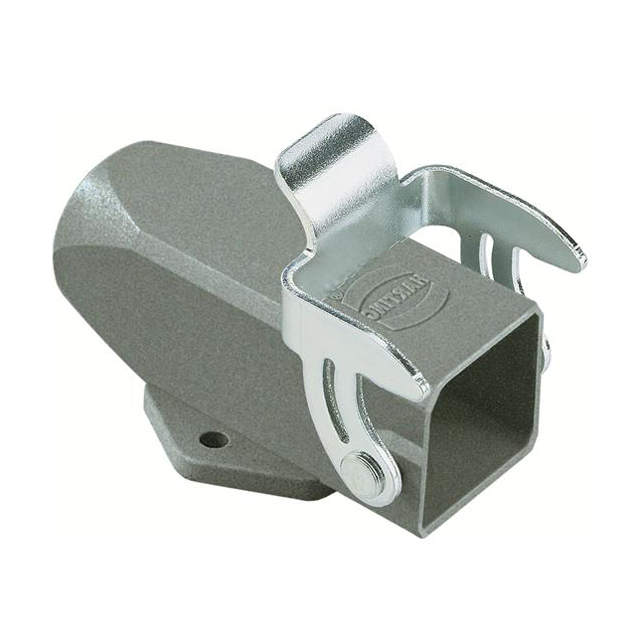

HARTING 09200031250	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	1.102 "	28 mm	27.2 mm	1.575 "	40 mm	1.071 in	Locking Clip (1) on Base Bottom	Side Entry	Base - Panel Mount 90°	Powder Coated	3 A
HARTING 09200031750	Gray	125 °C	-40 C	Zinc Die Cast	PG11	IP44	0.953 in	24.2 mm	57 mm	0.953 in	24.2 mm	2.244 "	Locking Clip (1) on Hood		Hood - Coupling Hood/Housing - Coupling	Powder Coated	3 A	Cable to Cable
