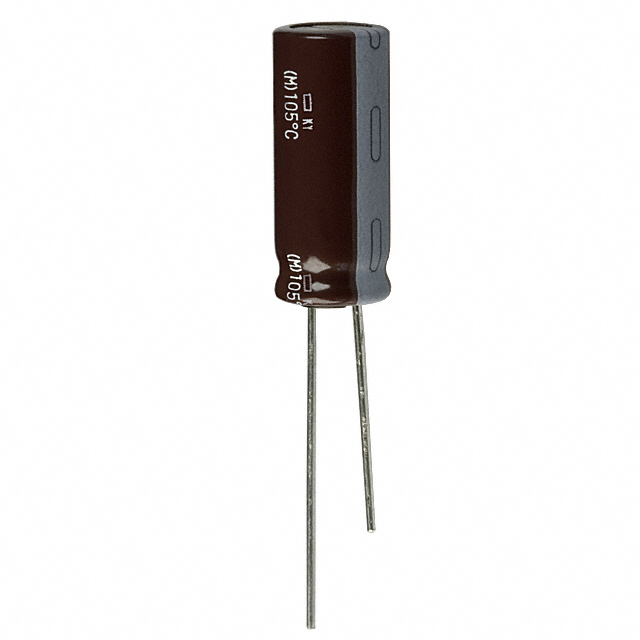

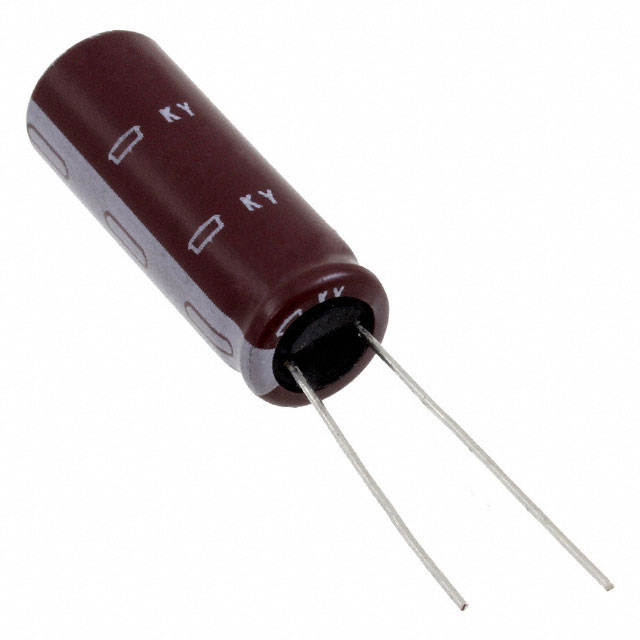

EKY-630E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 33UF 20% 63V RADIAL TH

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Capacitance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Mounting Type	Polarization	Voltage - Rated	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)
Chemi-Con EKY-630ELL330MF11D	350 mOhms	-40 C	105 ░C	265 mA	33 ÁF	General Purpose	0.492 in	12.5 mm	5000 Hrs	Through Hole	Polar	63 V	2.5 mm	0.098 in	0.248 "	6.3 mm	106 mA	Can Radial	20 %
Chemi-Con EKY-630ELL681ML25S	25 mOhms	-40 C	105 ░C	2.6 A	680 µF	General Purpose			10000 Hrs	Through Hole	Polar	63 V	7.5 mm	0.295 in	0.63 in	16 mm	1.56 A	Can Radial	20 %	26.5 mm	1.043 in
Chemi-Con EKY-630ELL271MK20S	41 mOhms	-40 C	105 ░C	1.5 A	270 µF	General Purpose	21.5 mm		10000 Hrs	Through Hole	Polar	63 V	5 mm	0.197 "	0.492 in	12.5 mm	750 mA	Can Radial	20 %			0.846 "
Chemi-Con EKY-630ELL471MK25S		-40 C	105 ░C		470 µF	General Purpose				Through Hole	Polar	63 V	5 mm	0.197 "	0.492 in	12.5 mm		Can Radial	20 %	26.5 mm	1.043 in
Chemi-Con EKY-630ELL331MK20S		-40 C	105 ░C		330 µF	General Purpose	21.5 mm			Through Hole	Polar	63 V	5 mm	0.197 "	0.492 in	12.5 mm		Can Radial	20 %			0.846 "
Chemi-Con EKY-630ELL820MJC5S	110 mOhms	-40 C	105 ░C	690 mA	0.082 mF	General Purpose	14 mm		7000 Hrs	Through Hole	Polar	63 V	5 mm	0.197 "	0.394 in	10 mm	276 mA	Can Radial	20 %			0.551 in
Chemi-Con EKY-630ELL221MJ25S	46 mOhms	-40 C	105 ░C	1.35 A	220 µF	General Purpose			7000 Hrs	Through Hole	Polar	63 V	5 mm	0.197 "	0.394 in	10 mm	675 mA	Can Radial	20 %	26.5 mm	1.043 in
Chemi-Con EKY-630ELL150ME11D	880 mOhms	-40 C	105 ░C	165 mA	15 µF	General Purpose	0.492 in	12.5 mm	5000 Hrs	Through Hole	Polar	63 V	2 mm	0.079 in	0.197 in	5 mm	66 mA	Can Radial	20 %
Chemi-Con EKY-630ELL681MK40S	21 mOhms	-40 C	105 ░C	2.8 A	680 µF	General Purpose			10000 Hrs	Through Hole	Polar	63 V	5 mm	0.197 "	0.492 in	12.5 mm	1.68 A	Can Radial	20 %			1.634 in	41.5 mm
Chemi-Con EKY-630ELL681MM20S	30 mOhms	-40 C	105 ░C	2.5 A	680 µF	General Purpose	21.5 mm		10000 Hrs	Through Hole	Polar	63 V	7.5 mm	0.295 in	0.709 in	18 mm	1.5 A	Can Radial	20 %			0.846 "
