TP-SC24 Series

Catalog

BATT CHARGER SOLAR 20A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Number of Cells	Battery Chemistry [custom]	Charge Current - Max [Max]	Voltage - Input	Power - Max	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Termination Style	Type	Battery Cell Size [Min]	Battery Cell Size [Max]	Battery Chemistry	Battery Cell Size	Voltage - Nominal [Max]	Voltage - Nominal [Min]	Voltage - Nominal
Tycon Systems Inc. TP-SC24-20N-MPPT	55 °C	-35 °C	CE	1	Lead Acid Lithium-Ion	20 A	110 VDC	260 W 520 W	Chassis Mount	2.3 in	210.82 mm	8.3 in	58.42 mm	5.9 "	149.86 mm	LED Indicator Multiple Charge Modes	Screw Terminal	Solar Charger	12 V	24 V

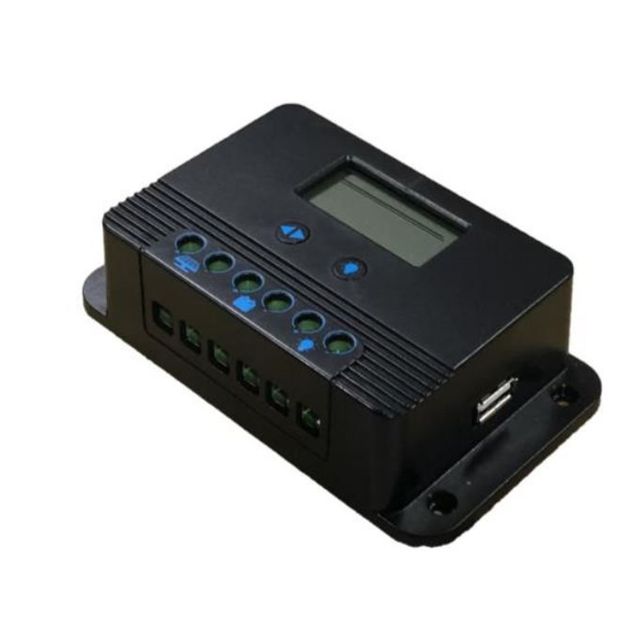

Tycon Systems Inc. TP-SC24-20	60 °C	-35 °C -30 ░C	CE	1		20 A	55 V	260 W 520 W	Chassis Mount	1.5 in	129.54 mm	5.1 in	38.1 mm	3 "	76.2 mm	LED Indicator Multiple Charge Modes USB Pluggable	Screw Terminal	Solar Charger	12 V	24 V	Lead Acid	12 V 24 V	28.8 V	14.4 V	14.4 V 28.8 V
