628-25W Series
Manufacturer: EDAC Inc.
Beta
⌘K

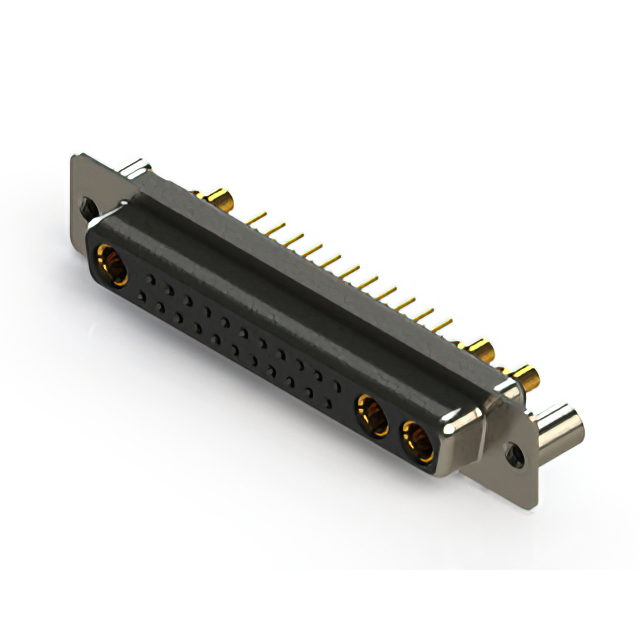

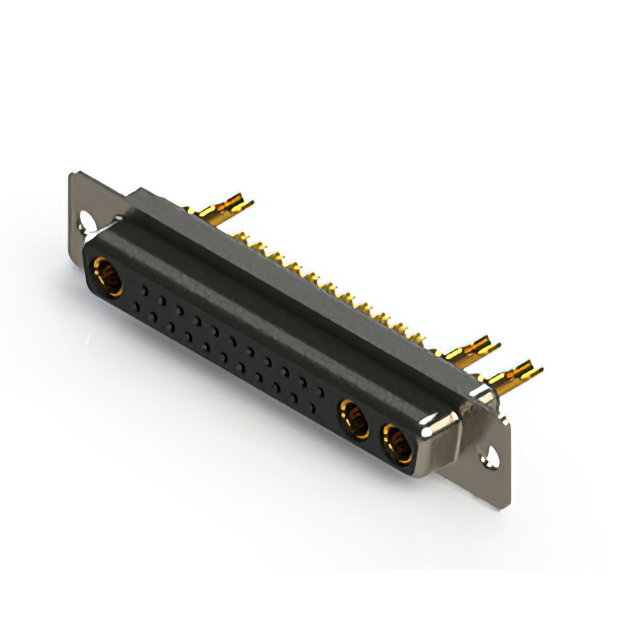

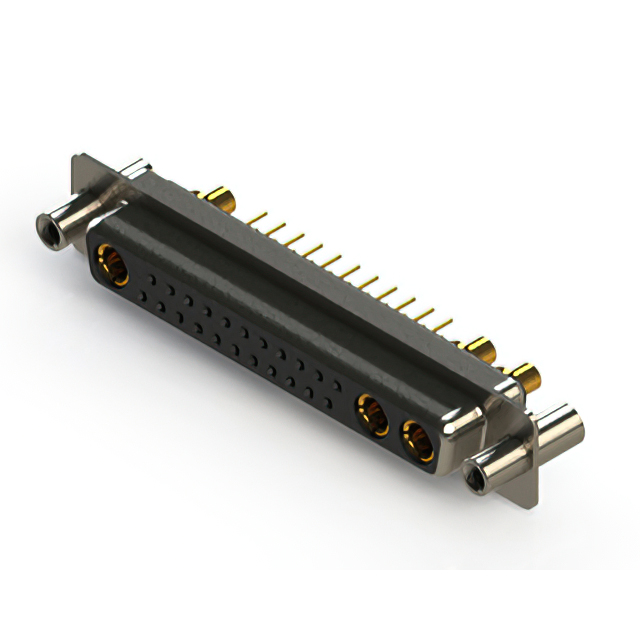

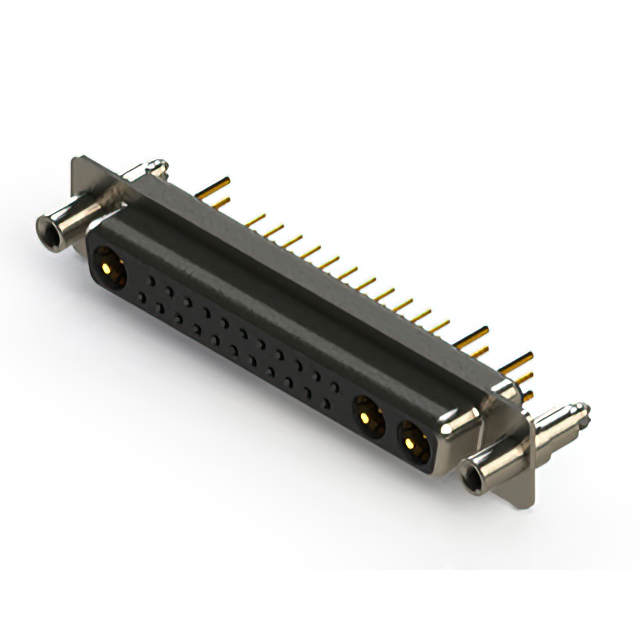

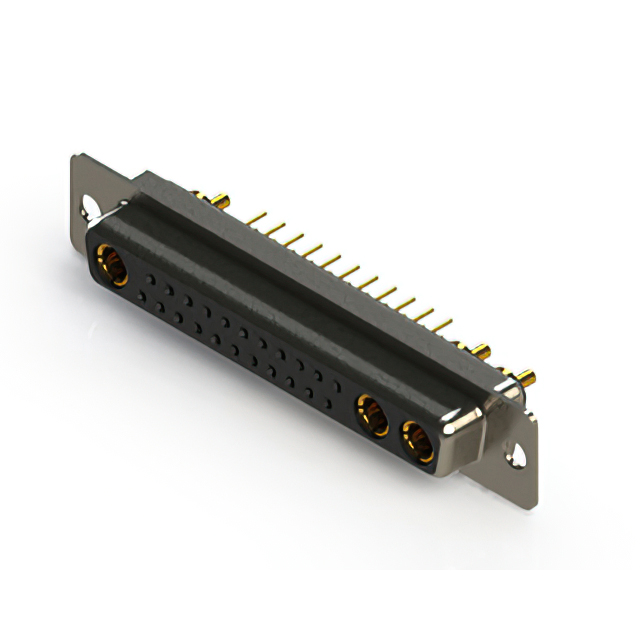

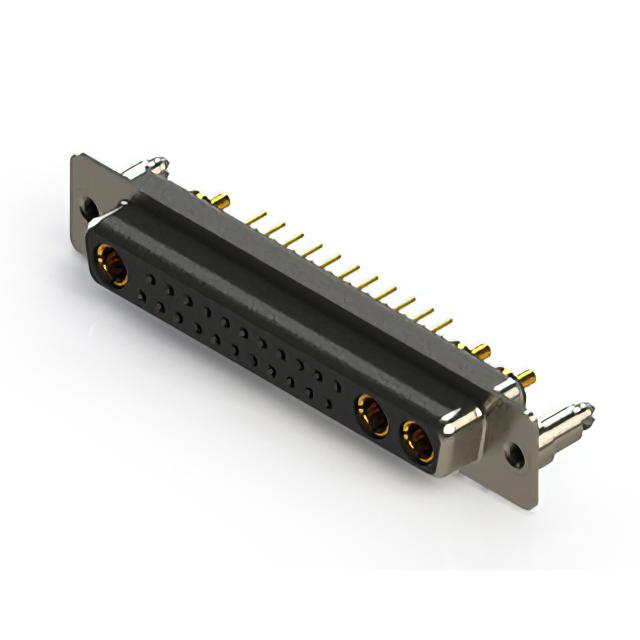

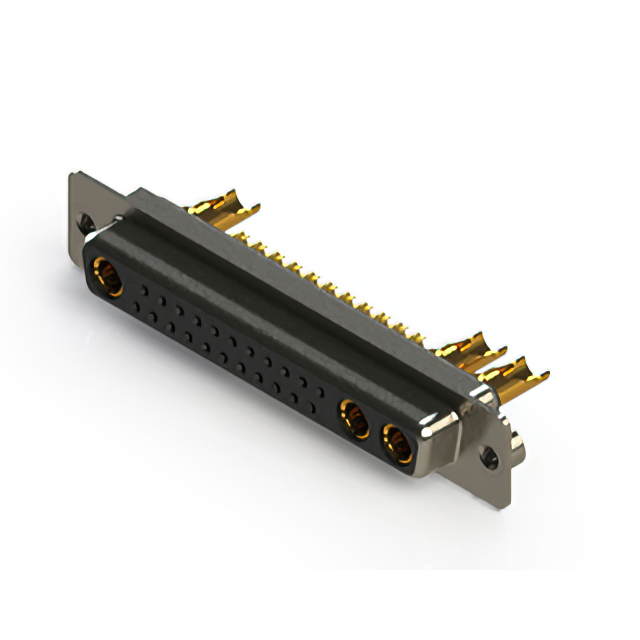

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-25W3, RECEPTACLE, 25 CONTACTS
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Material | Current Rating (Amps) | Connector Style | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Flange Feature | Contact Finish | Features | Mounting Type | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Number of Positions [custom] | Termination | Shell Material, Finish | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | 10A 5A | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Housing/Shell (Unthreaded) | Gold | Shielded | Free Hanging (In-Line) | Receptacle Female Sockets | 3 | 22 | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Board Side (M3) | Gold | Shielded | Free Hanging (In-Line) | Receptacle Female Sockets | 3 | 22 | 5 A 30 A | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | Combo D-Sub | Coax Signal | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | M3 | Gold | Board Lock Shielded | Through Hole | Receptacle Female Sockets | 22 | Flash | 3 | Solder | ||||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | 10A 5A | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | Board Side (4-40) | Gold | Shielded | Through Hole | Receptacle Female Sockets | 3 | 22 | Flash | Solder | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | Combo D-Sub | Coax Signal | (DC C) - 25W3 | 4 | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Board Side (4-40) | Gold | Shielded | Through Hole | Receptacle Female Sockets | 22 | 3 | Solder | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | M3 | Gold | Board Lock Shielded | Through Hole | Receptacle Female Sockets | 3 | 22 | 5 A 30 A | Flash | Solder | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | 20A 5A | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | Housing/Shell (Unthreaded) | Gold | Shielded | Free Hanging (In-Line) | Receptacle Female Sockets | 3 | 22 | Flash | Nickel Plated Steel | |||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | 10A 5A | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | Gold | Shielded | Through Hole | Receptacle Female Sockets | 3 | 22 | Flash | Solder | Nickel Plated Steel | 4-40 | 4-40 | |||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | 20A 5A | Combo D-Sub | Signal and Power | (DC C) - 25W3 | 4 | UL94 V-0 | 2 | Board Side (4-40) | Gold | Shielded | Through Hole | Receptacle Female Sockets | 3 | 22 | Flash | Solder | Nickel Plated Steel | ||||||
 EDAC Inc. | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | Copper Alloy | Combo D-Sub | Coax Signal | (DC C) - 25W3 | 4 | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Board Side (4-40) | Gold | Shielded | Through Hole | Receptacle Female Sockets | 22 | 3 | Solder |
