046817 Series
Manufacturer: Molex
Beta
⌘K

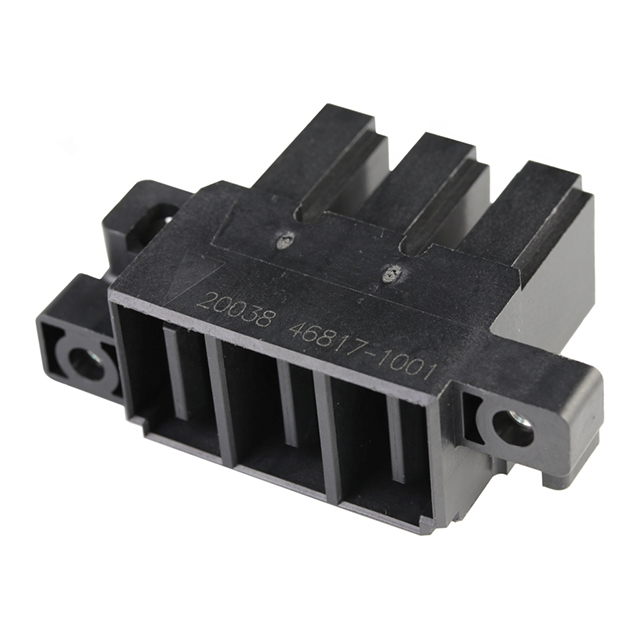

CONN F 3 POS 11MM SOLDER RA THRU-HOLE 36 TERMINAL 3 PORT TRAY
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows | Contact Finish | Voltage Rating | Current Rating (Amps) | Color | Termination | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board Guide Flange | -40 °C | 105 ░C | Plug Male Blades | 11 mm | 0.433 in | Through Hole Right Angle | 0.76 Ám | 30 Áin | Copper Alloy | 1 | Gold | 600 V | 80 A | Black | Solder | Polyester Glass Filled |
 Molex | Board Guide Flange | -40 °C | 105 ░C | Plug Male Blades | 11 mm | 0.433 in | Through Hole Right Angle | 0.76 Ám | 30 Áin | Copper Alloy | 1 | Gold | 600 V | 80 A | Black | Solder | Polyester Glass Filled |
