LPH15 Series

Catalog

FAN AXIAL 172X51.5MM 100-240VAC

Part	Material - Frame	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Width [x]	Noise	Termination	Approval Agency	Fan Type	RPM	Bearing Type	Features	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection

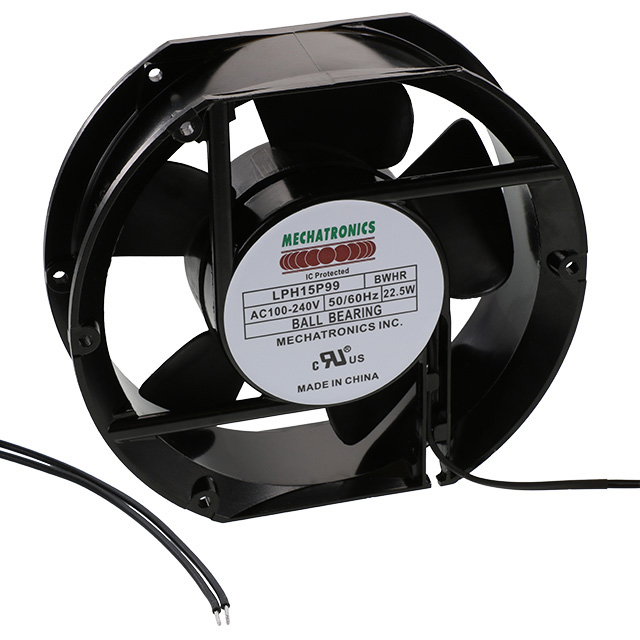

Mechatronics Fan Group LPH15P99-BWHR	Aluminum	6.38 mł/min	228 CFM	Plastic	0.2 A	22.5 W	0.6 in H2O	149.5 Pa	-40 C	70 °C	70 °C	-40 °C	240 VAC	100 VAC	51.5 mm	55 dB(A)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	3200 RPM	Ball	Auto Restart Electronic Commutation (EC)	152 mm	Rectangular/Rounded	172 mm	1.6 lbs	725.7 g

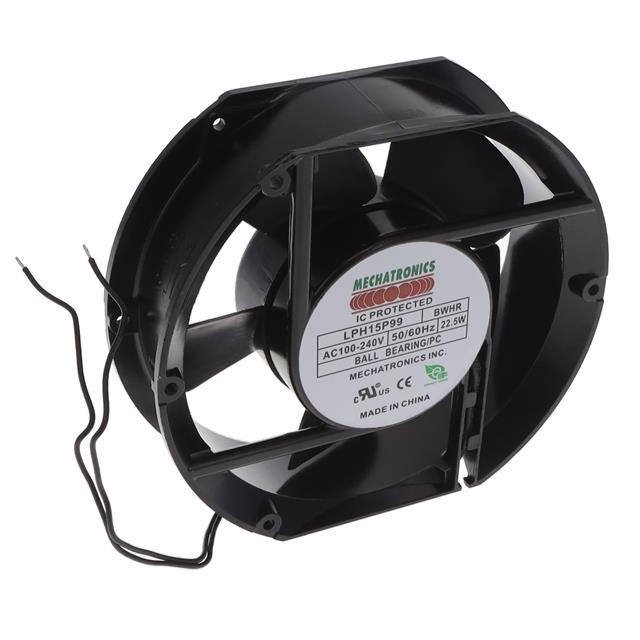

Mechatronics Fan Group LPH15P99-BWHR-PC	Aluminum	6.38 mł/min	228 CFM	Plastic	0.2 A	22.5 W	0.6 in H2O	149.5 Pa					240 VAC	100 VAC	51.5 mm	55 dB(A)	2 Wire Leads		Tubeaxial	3200 RPM	Ball	Auto Restart Electronic Commutation (EC) Parylene Coating	152 mm	Rectangular/Rounded	172 mm	1.6 lbs	725.7 g	90 VAC	264 VAC	IP55 - Dust Protected Water Resistant

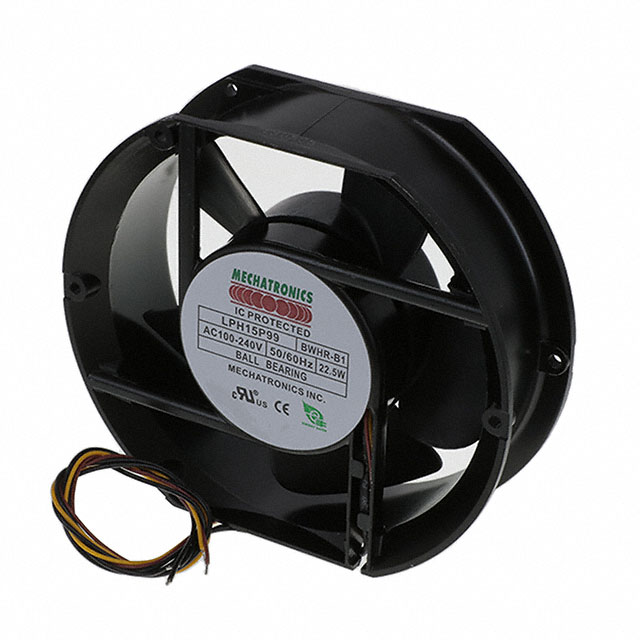

Mechatronics Fan Group LPH15P99-BWHR-B1	Aluminum	6.38 mł/min	228 CFM	Plastic	0.2 A	22.5 W	0.6 in H2O	149.5 Pa					240 VAC	100 VAC	51.5 mm	55 dB(A)	3 Wire Leads		Tubeaxial	3200 RPM	Ball	Auto Restart Electronic Commutation (EC) Speed Sensor (Tach)	152 mm	Rectangular/Rounded	172 mm	1.6 lbs	725.7 g	90 VAC	264 VAC
