328394 Series

Catalog

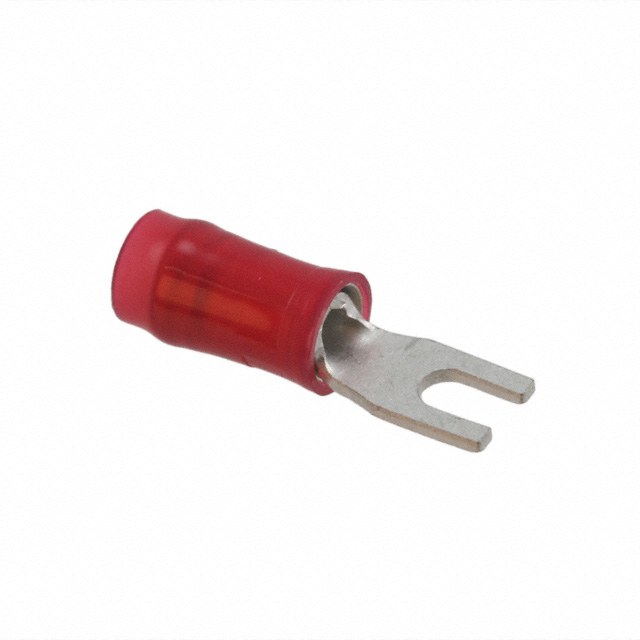

CONN SPADE TERM 16-22AWG #2 RED

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Insulation	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Termination	Terminal Type	Contact Material	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges	Width - Outer Edges	Color	Mounting Type
TE Connectivity Raychem Cable Protection 8-328394-1	0.203 in	5.16 mm	Serrated Termination	Insulated	18.47 mm	0.727 in	22 AWG	16 AWG	2 Stud	0.404 "	10.26 mm	2.36 mm	0.093 in	Nylon Polyamide (PA)	Crimp	Standard	Copper	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	4.62 mm	0.182 "	Red	Free Hanging (In-Line)
