9230-1553 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

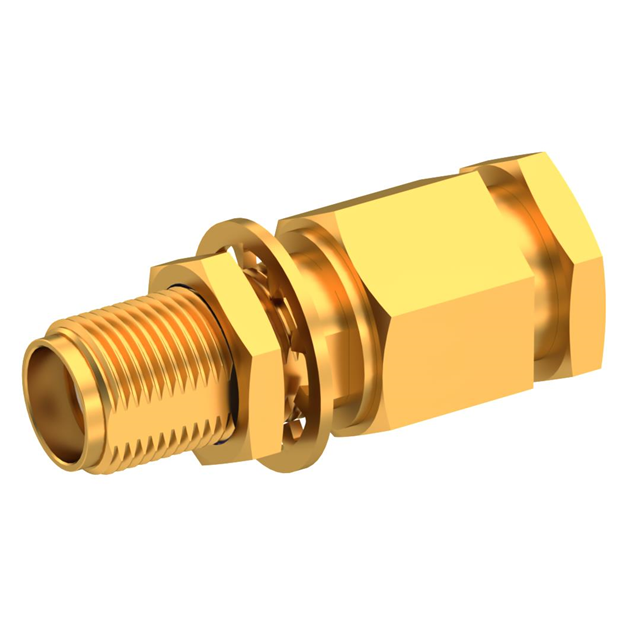

SMA / STRAIGHT JACK FEMALE CLAMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Body Material | Center Contact Plating | Housing Color | Center Contact Material | Connector Style | Contact Termination | Fastening Type | Mounting Type | Shield Termination | Impedance | Number of Ports | Mounting Feature | Connector Type | Cable Group | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | 250 V | Gold | Stainless Steel | Gold | Gold | Beryllium Copper | SMA | Compression | Threaded | Panel Mount | Clamp | 50 Ohms | 1 | Bulkhead - Front Side Nut | Female Socket Jack | 188 316 RG-174 | 12.4 GHz |
