9293-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Finish	Contact Material	Socket Depth	Socket Depth	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 9293-0-15-80-06-14-10-0	-55 C	125 °C	0.067 in	1.7 mm	2.16 mm	0.085 "	No Tail	Gold	Beryllium Copper	0.2 in	5.08 mm	Hex Press-Fit	0.051 in	1.3 mm	0.25 Ám	10 Áin

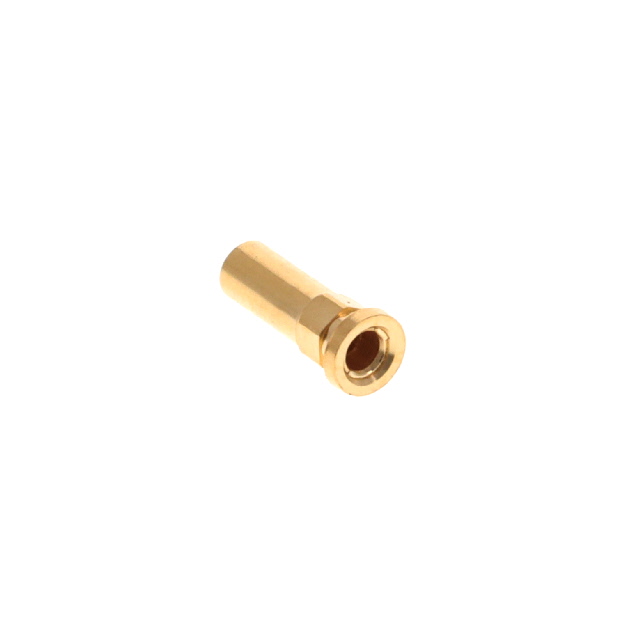

Mill-Max Manufacturing Corp. 9293-0-15-15-06-27-10-0	-55 C	125 °C	0.067 in	1.7 mm	2.16 mm	0.085 "	No Tail	Gold	Beryllium Copper	0.2 in	5.08 mm	Hex Press-Fit	0.051 in	1.3 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 9293-0-15-01-06-27-10-0	-55 C	125 °C	0.067 in	1.7 mm	2.16 mm	0.085 "	No Tail	Gold	Beryllium Copper	0.2 in	5.08 mm	Hex Press-Fit	0.051 in	1.3 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 9293-0-15-15-06-14-10-0	-55 C	125 °C	0.067 in	1.7 mm	2.16 mm	0.085 "	No Tail	Gold	Beryllium Copper	0.2 in	5.08 mm	Hex Press-Fit	0.051 in	1.3 mm	0.25 Ám	10 Áin
