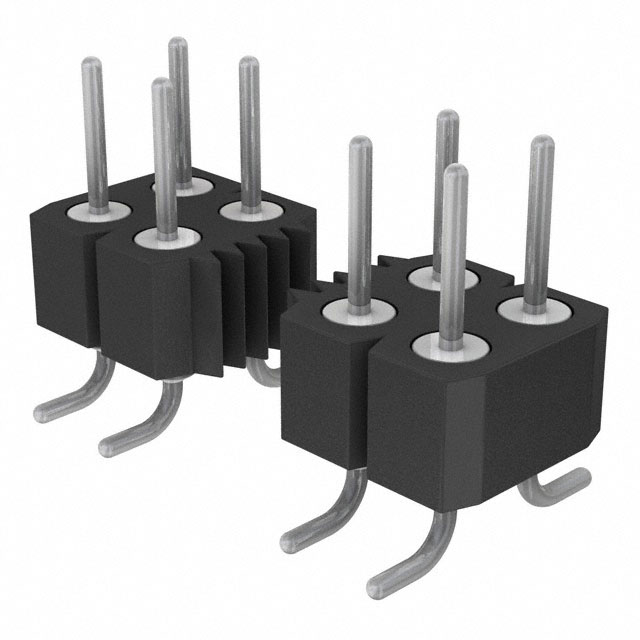

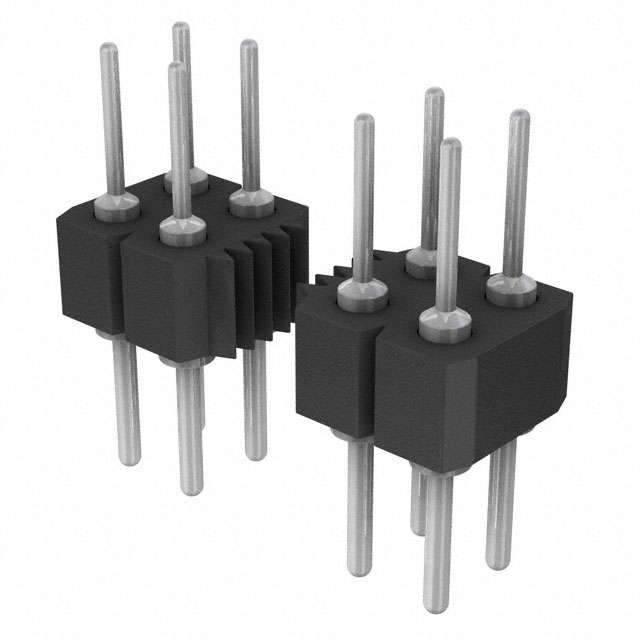

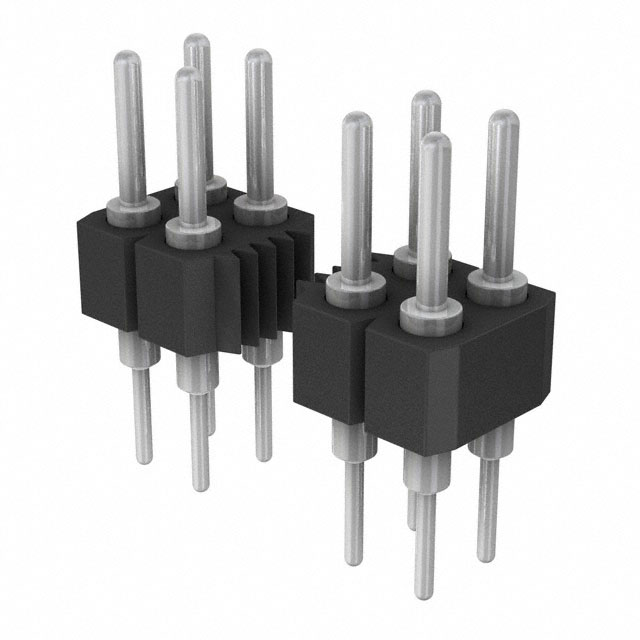

450-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER SMD 36POS 2.54MM

...

Part	Contact Length - Mating	Contact Length - Mating	Connector Type	Shrouding	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Termination	Number of Positions Loaded	Fastening Type	Insulation Color	Number of Rows [custom]	Mounting Type	Insulation Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Features	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Preci-Dip 450-80-236-01-899101	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	36
Preci-Dip 450-80-254-00-018101	0.169 in	4.3 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	54	0.124 in	3.15 mm	0.48 in	12.19 mm
Preci-Dip 450-80-262-01-899101	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	62
Preci-Dip 450-80-220-00-106191	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	20					Pick and Place
Preci-Dip 450-80-230-01-899101	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	30
Preci-Dip 450-80-264-00-106101	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	64
Preci-Dip 450-80-220-00-001101			Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	20	0.164 in	4.17 mm				0.477 in	12.12 mm	0.156 in	3.96 mm
Preci-Dip 450-80-218-00-006101	0.141 in	3.6 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	18			0.394 in	10 mm						0.114 in	2.9 mm
Preci-Dip 450-80-212-00-018101	0.169 in	4.3 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	12	0.124 in	3.15 mm	0.48 in	12.19 mm
Preci-Dip 450-80-242-00-018101	0.169 in	4.3 mm	Header	Unshrouded	Brass	0.1 "	2.54 mm	Male Pin	Circular	3 A	UL94 V-0	150 VDC	Solder	All	Push-Pull	Black	2	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	-55 C	125 °C	0.1 in	2.54 mm	42	0.124 in	3.15 mm	0.48 in	12.19 mm
