327717 Series

Catalog

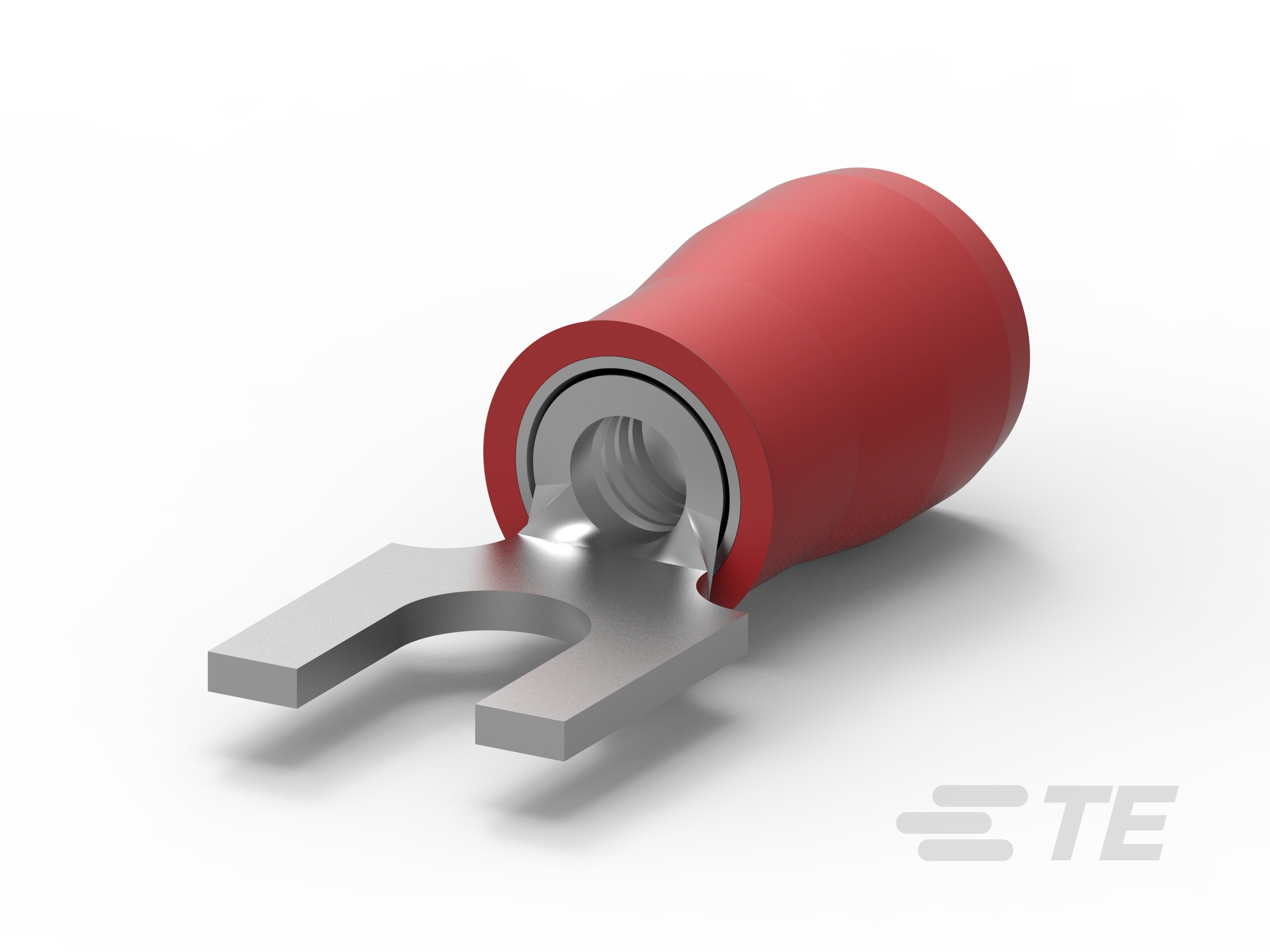

PIDG SPD 22-16 COMM 22-18MIL 4

Part	Length - Termination	Length - Termination	Stud/Tab Size	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Features	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Mounting Type	Material - Insulation	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Color	Length - Overall [x]	Length - Overall [x]	Insulation	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 1-327717-0	0.404 "	10.26 mm	4 Stud	Copper	2.03 mm	3.18 mm	0.125 "	0.08 in	Standard	5.54 mm	0.218 in	Tin	Serrated Termination	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	22 AWG	16 AWG	3.02 mm	0.119 in	Red	0.674 "	17.12 mm	Insulated
TE Connectivity Raychem Cable Protection 8-327717-1	0.404 "	10.26 mm	4 Stud	Copper	2.67 mm		0.14 in	0.105 in	Standard	5.54 mm	0.218 in	Tin	Serrated Termination	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Crimp	22 AWG	16 AWG	3.02 mm	0.119 in	Red	0.674 "	17.12 mm	Insulated	3.56 mm
