1212A Series
Manufacturer: Belden Inc.
Beta
⌘K

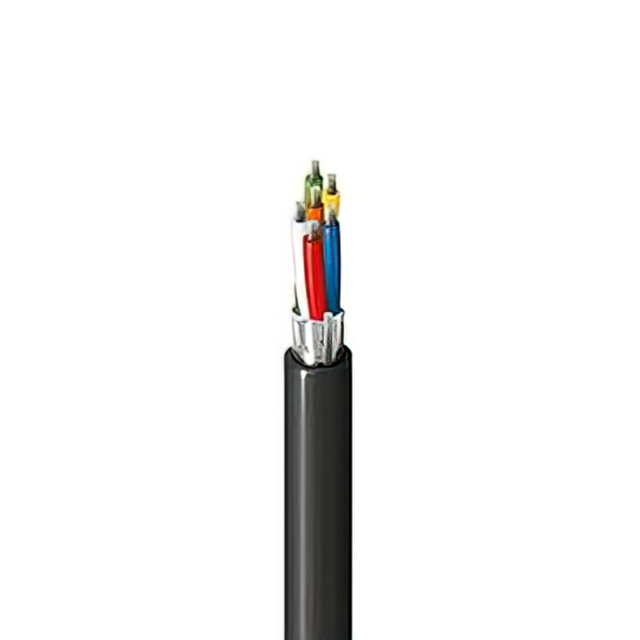

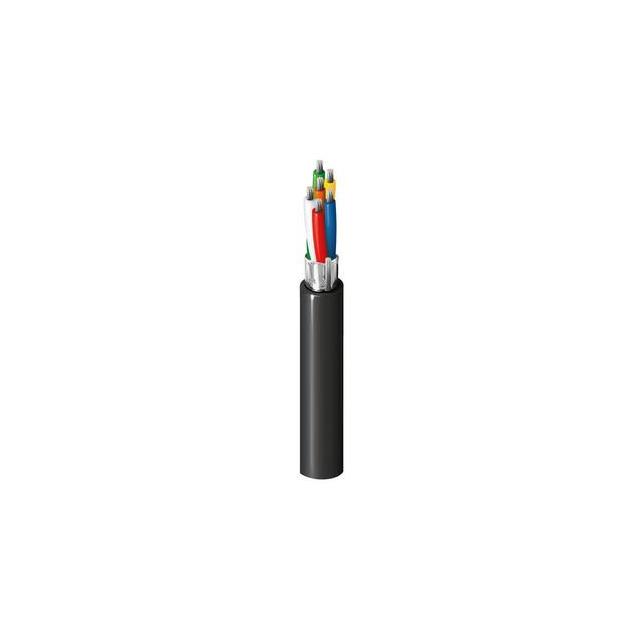

CABLE 6COND 26AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Material | Cable Type | Conductor Strand [x] | Conductor Strand [x] | Ratings | Conductor Insulation | Number of Conductors | Jacket Color | Length | Length | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Material | Voltage | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 80 °C | -20 ░C | 0.94 mm | 0.037 in | Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 34 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 6 | Black | 152.4 m | 500 ft | Foil | 5.59 mm | 0.22 in | Drain Wire | Copper Tinned | 300 VDC | 26 AWG |
 Belden Inc. | 100 % | Aluminum | 80 °C | -20 ░C | 0.94 mm | 0.037 in | Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 34 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 6 | Black | 304.8 m | 1000 ft | Foil | 5.59 mm | 0.22 in | Drain Wire | Copper Tinned | 300 VDC | 26 AWG |
