MPVZ5 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
SENSOR 0.57PSIG 4.9V 8DIP
| Part | Package Name | Output Voltage (Min) | Output Voltage (Max) | Pressure Type | Accuracy | Output Type | Applications | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Termination Style | Package / Case | Port Style | Operating Pressure | Operating Temperature (Max) | Operating Temperature (Min) | Features | Maximum Pressure | Mounting Type | Port Diameter | Port Gender | Port Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

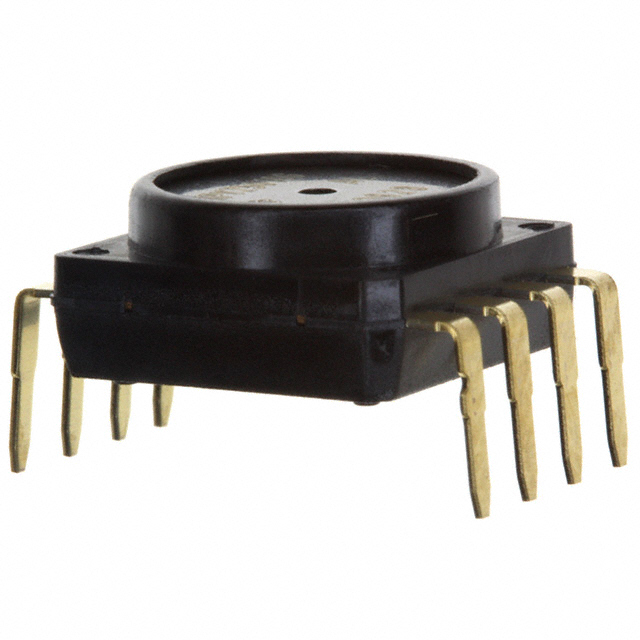

 NXP USA Inc. | 8-DIP | 1 V | 4.9 V | Vented Gauge | 6.25 % | Analog Voltage | Board Mount | 5.25 V | 4.75 V | PC Pin | 8-DIP Module | No Port | 0.57 PSI | 85 °C | 0 °C | Temperature Compensated | 2.32 PSI | Through Hole | |||
 NXP USA Inc. | 1 V | 4.9 V | Vented Gauge | 6.25 % | Analog Voltage | Board Mount | 5.25 V | 4.75 V | Gull Wing | 8-SMD Gull Wing Top Port | Barbless | 0.57 PSI | 85 °C | 0 °C | Temperature Compensated | 2.32 PSI | Surface Mount | 0.13 " | Male | Tube |
