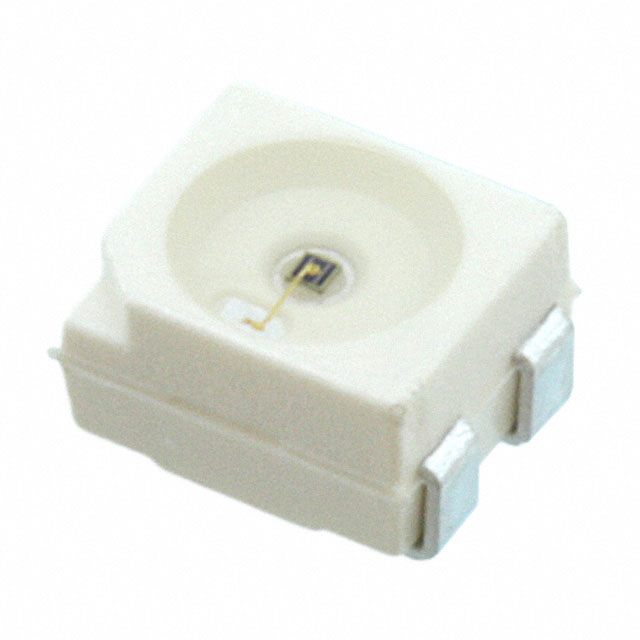

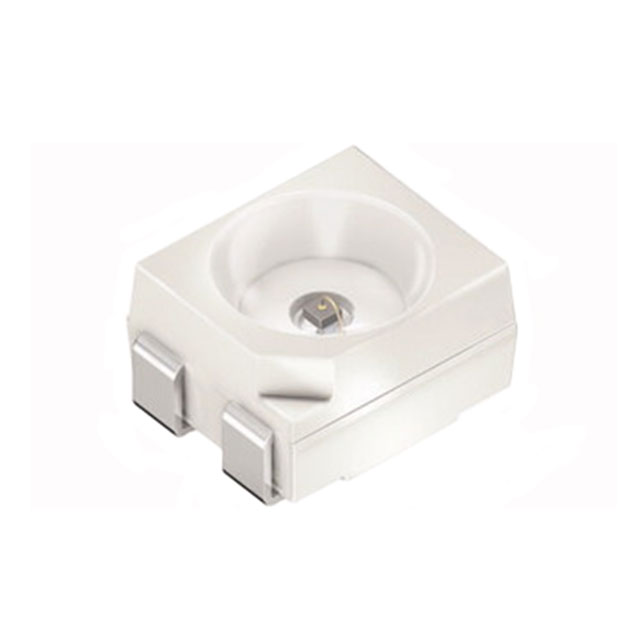

SFH4250 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
POWER TOPLED
| Part | Package / Case | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Forward (Vf) (Typ) | Mounting Type | Type | Wavelength | Viewing Angle | Radiant Intensity (Ie) Min @ If [Min] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 4-PLCC | 100 mA | 85 C | -40 ¯C | 1.5 V | Surface Mount | Infrared (IR) | 860 nm | 120 ° | 18 mW/sr | Top View |
 ams-OSRAM USA INC. | 4-PLCC | 100 mA | 100 °C | -40 °C | 1.5 V | Surface Mount | Infrared (IR) | 860 nm | 120 ° | 14 mW/sr | Top View |
 ams-OSRAM USA INC. | 4-PLCC | 100 mA | 100 °C | -40 °C | 1.5 V | Surface Mount | Infrared (IR) | 860 nm | 120 ° | 11.2 mW/sr | Top View |
