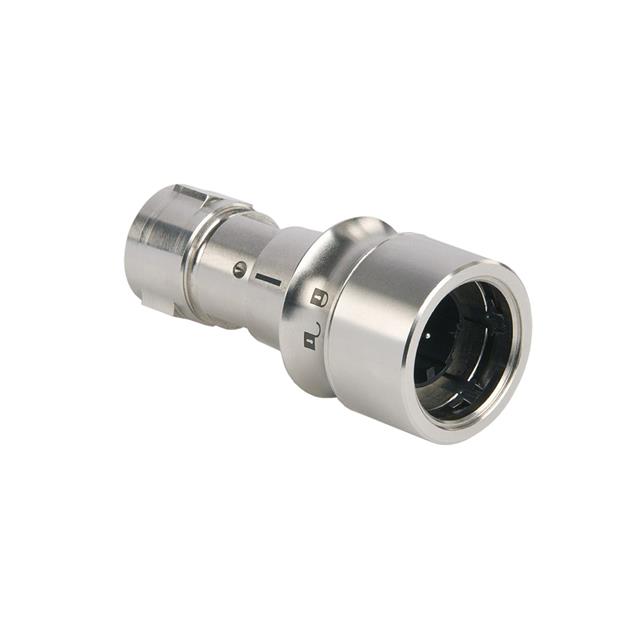

PXM6010 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

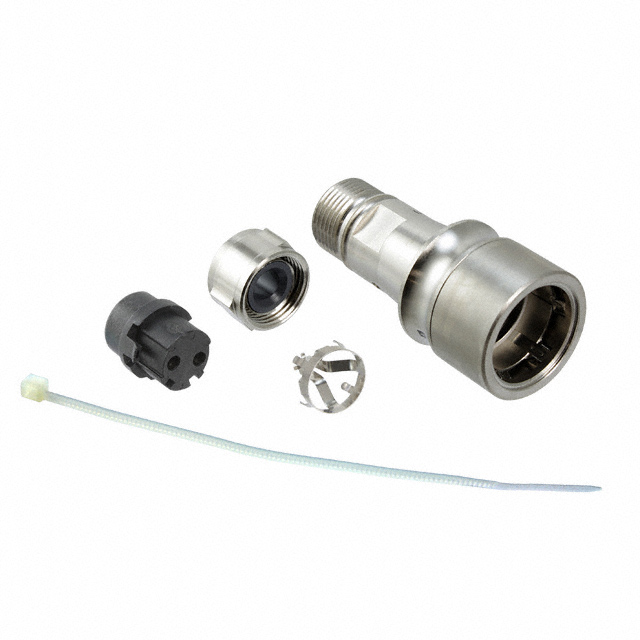

6000 METAL SERIES FLEX CONNECTOR 2
| Part | Fastening Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Shielding | Ingress Protection | Cable Opening [Min] | Cable Opening [Max] | Contact Finish - Mating | Current Rating (Amps) | Primary Material | Voltage Rating | Shell Material | Contact Material | Number of Positions | Mounting Type | Termination | Shell Finish | Connector Type | Features | Type | Contact Type | Note | Housing Color | Contact Shape | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Push-Twist | Silver | 120 °C | -40 C | Keyed | Unshielded | IP66 IP68 IP69K | 0.276 " 7 mm | 0.354 in 9 mm | Nickel | 16 A | Metal | 277 VAC | Brass | Brass | 2 | Free Hanging (In-Line) | Screw | Nickel | Receptacle Male Pins | Coupling Nut | |||||||
BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Shielded | IP66 IP68 IP69K | Metal | Brass | 8 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Female Sockets | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | ||||||||||
 BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Shielded | IP66 IP68 IP69K | Metal | Brass | 8 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Female Sockets | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | ||||||||||
BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Unshielded | IP66 IP68 IP69K | Brass | 22 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Male Pins | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | |||||||||||
BULGIN LIMITED | Push-Twist | Silver | 120 °C | -40 C | Keyed | Shielded | IP66 IP68 IP69K | 0.354 in | 0.394 in | Nickel | 16 A | Metal | 277 VAC | Brass | Brass | 2 | Free Hanging (In-Line) | Screw | Nickel | Receptacle Female Sockets | Coupling Nut | 10 mm | 9 mm | |||||
BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Shielded | IP66 IP68 IP69K | Metal | Brass | 2 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Female Sockets | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | ||||||||||
BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Unshielded | IP66 IP68 IP69K | Metal | Brass | 3 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Male Pins | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | ||||||||||
 BULGIN LIMITED | Push-Twist | Silver | 120 °C | -40 C | Keyed | Shielded | IP66 IP68 IP69K | 0.197 in | 0.276 " | Nickel | 16 A | Metal | 277 VAC | Brass | Brass | 2 | Free Hanging (In-Line) | Screw | Nickel | Receptacle Female Sockets | Coupling Nut | 7 mm | 5 mm | |||||
BULGIN LIMITED | Push-Twist | 120 °C | -40 C | Keyed | Unshielded | IP66 IP68 IP69K | Metal | Brass | 2 | Free Hanging (In-Line) | Nickel | Plug Housing | Backshell Coupling Nut | For Female Sockets | Crimp and Solder Cup | Contacts Not Included | Silver | Circular | ||||||||||
BULGIN LIMITED | Push-Twist | Silver | 120 °C | -40 C | Keyed | Unshielded | IP66 IP68 IP69K | Nickel | 16 A | Metal | 277 VAC | Brass | Brass | 3 | Free Hanging (In-Line) | Screw | Nickel | Receptacle Male Pins | Coupling Nut |
