MX25L51245 Series
Manufacturer: Macronix
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

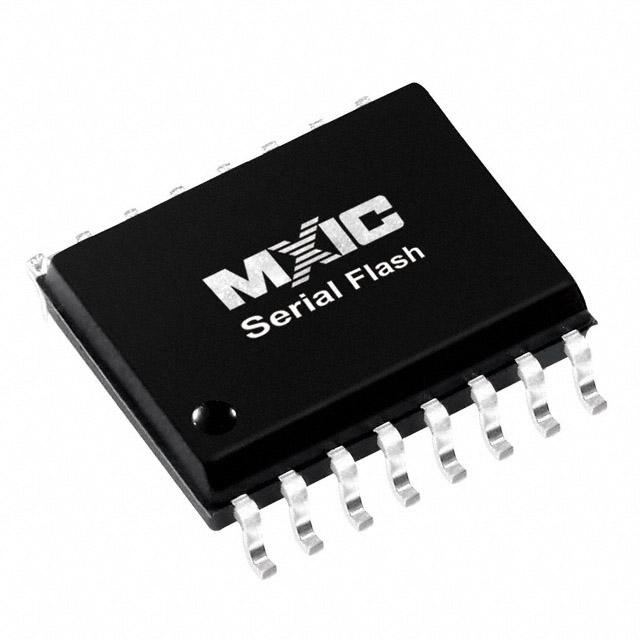

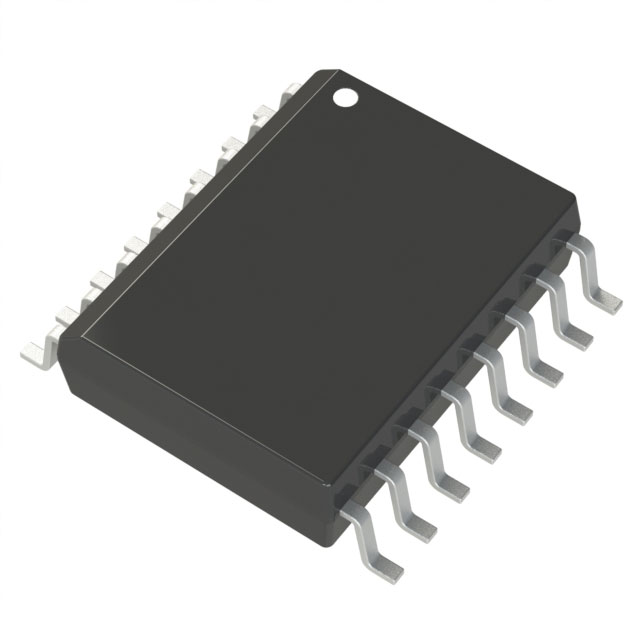

IC FLASH 512MBIT SPI/QUAD 16SOP
| Part | Memory Interface (Type) | Memory Format | Clock Frequency | Write Cycle Time - Word | Write Cycle Time - Page | Operating Temperature (Max) | Operating Temperature (Min) | Memory Depth | Memory Width | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Technology | Memory Type | Package Name | Memory Size | Package Length | Package Width | Access Time | Memory Organization | Memory Width (Option 2) | Memory Depth (Option 2) | Memory Depth (Option 3) | Memory Depth (Option 1) | Memory Width (Option 1) | Memory Width (Option 3) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Macronix | DTR QPI SPI - Quad I/O | FLASH | 133 MHz | 60 µs | 750 µs | 105 °C | -40 °C | 64 M | 8 bit | 3.6 V | 2.7 V | Surface Mount | FLASH - NOR | Non-Volatile | 16-SOIC 16-SOP | 512 Mb | 0.295 in | 7.5 mm | ||||||||
 Macronix | DTR QPI SPI - Quad I/O | FLASH | 104 MHz | 4 ms | 4 ms | 105 °C | -40 °C | 3.6 V | 2.7 V | Surface Mount | FLASH - NOR (SLC) | Non-Volatile | 16-SOIC 16-SOP | 512 Mb | 0.295 in | 7.5 mm | 5.5 ns | 128M x 4 256M x 2 512M x 1 | 2 bit | 256 M | 512 M | 128 M | 4 bit | 1 bit |
