046207 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 6POS 4.2MM

Part	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Material	Contact Shape	Fastening Type	Contact Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Termination	Contact Finish - Post	Number of Positions	Features	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating

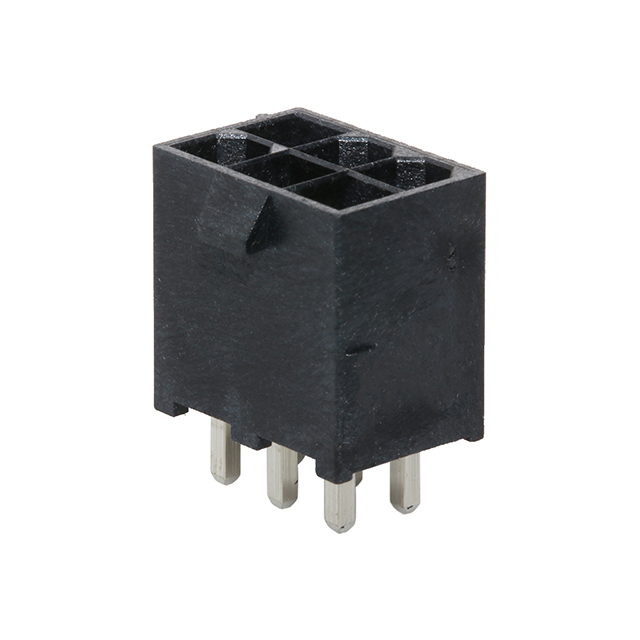

Molex 0462071206	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	5.26 mm	0.207 in	Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	6
Molex 0462070108	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole			Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	8	Board Guide	0.176 in	4.46 mm
Molex 0462071006	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	3.66 mm	0.144 in	Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	6
Molex 0462073004	4.2 mm	0.165 in	Header	Board to Board Cable	2.54 µm	100 µin	All	13.72 mm	0.54 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	3.66 mm	0.144 in	Brass Alloy	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	4	Board Guide			-40 °C	105 ░C	Varies by Wire Gauge	600 VAC
Molex 0462070224	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	5.26 mm	0.207 in	Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	24	Board Guide

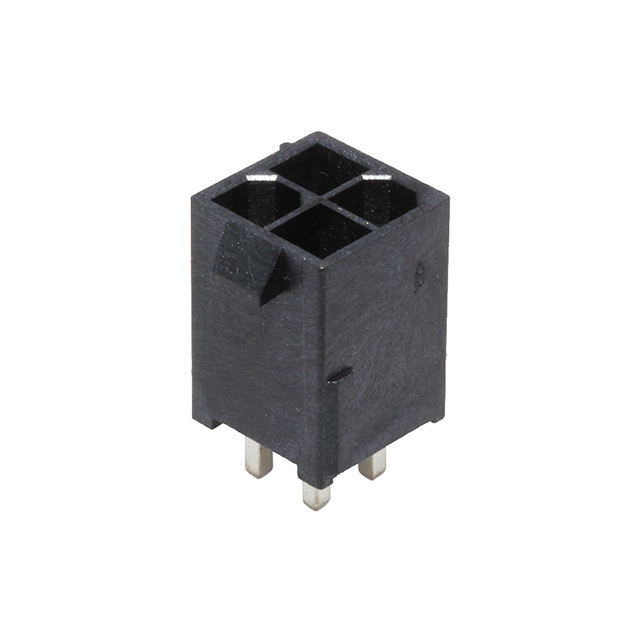

Molex 0462071004	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	3.66 mm	0.144 in	Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	4
Molex 0462071104	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole			Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	4		0.176 in	4.46 mm
Molex 0462074006	4.2 mm	0.165 in	Header	Board to Board Cable	2.54 µm	100 µin	All	13.72 mm	0.54 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	3.66 mm	0.144 in	Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	6				-40 °C	105 ░C	Varies by Wire Gauge	600 VAC

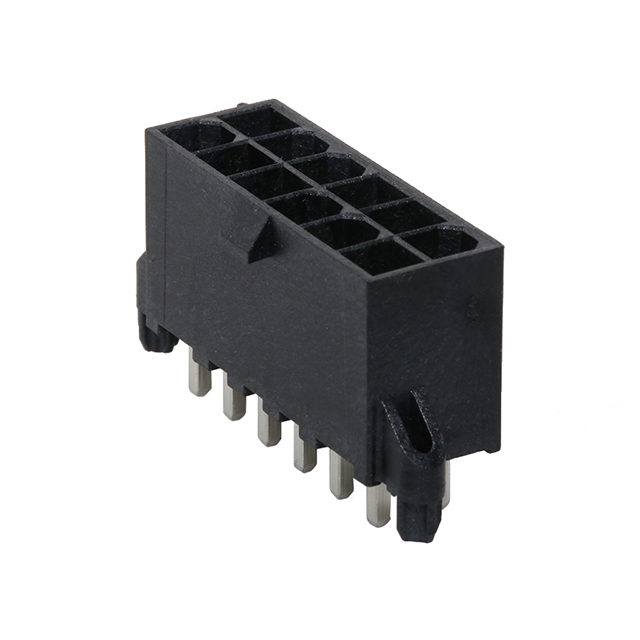

Molex 0462070112	4.2 mm	0.165 in	Header	Board to Cable/Wire	2.54 µm	100 µin	All	13.6 mm	0.535 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole			Brass	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	2.54 çm	100 çin	Shrouded - 4 Wall	Solder	Tin	12	Board Guide	0.176 in	4.46 mm
Molex 0462075108	4.2 mm	0.165 in	Header	Board to Board Cable	2.54 µm	100 µin	All	13.72 mm	0.54 in	2	UL94 V-0	4.2 mm	0.165 in	Black	Through Hole	4.47 mm	0.176 "	Brass Alloy	Square	Locking Ramp	Male Pin	General Purpose Industrial Telecommunications	0.076 µm	3 µin	Shrouded - 4 Wall	Solder	Tin	8	Board Guide			-40 °C	125 °C	Varies by Wire Gauge	600 VAC	Gold
