1004P6 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DP3T 5A 120V

Part	Electrical Life (Cycles)	Actuator Material	Features	Circuit	Switch Function	Voltage Rating - DC	Illumination	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Termination Style	Bushing Thread	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Length	Mounting Type	Current Rating	Actuator Type
E-Switch 1004P6T7B13M1QEH	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	28 V	Non-Illuminated	120 V	11.91 mm	Circular	Solder Lug	15/32-32	85 °C	-30 °C	13 mm	Panel Mount	5 A	Standard Round
E-Switch 1004P6T1B4M7QE	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	28 V	Non-Illuminated	120 V			PC Pin	Unthreaded	85 °C	-30 °C	10.41 mm	Right Angle Through Hole Vertical	5 A	Standard Round
E-Switch 1004P6T8B13M1QE	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	28 V	Non-Illuminated	120 V	11.91 mm	Circular	Solder Lug	15/32-32	85 °C	-30 °C	18 mm	Panel Mount	5 A	Standard Round
E-Switch 1004P6T8B13M1QEH	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	28 V	Non-Illuminated	120 V	11.91 mm	Circular	Solder Lug	15/32-32	85 °C	-30 °C	18 mm	Panel Mount	5 A	Standard Round

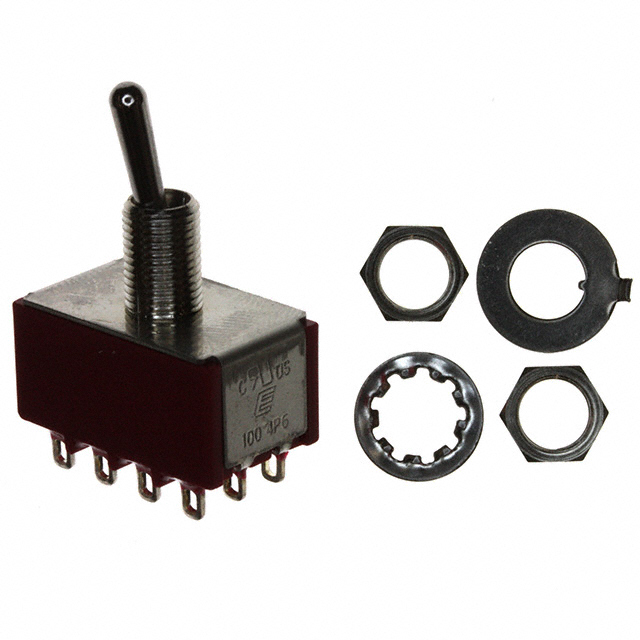

E-Switch 1004P6T1B1M1QEH	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	28 V	Non-Illuminated	120 V	0.25 "	Circular	Solder Lug	1/4-40	85 °C	-30 °C	10.41 mm	Panel Mount	5 A	Standard Round
E-Switch 1004P6T9B1M7RE	40000	Brass Chrome Plated	Jumper needed to achieve triple throw	DP3T	On-On-On	20 V	Non-Illuminated	20 V	0.25 "	Circular	PC Pin	1/4-40	85 °C	-30 °C	21.34 mm	Panel Mount Right Angle Vertical	0.4 VA	Standard Round
