SP3422-04UTG Series

22kV 5V 2A 0.2pF TVS Diod 5FC-DFN

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

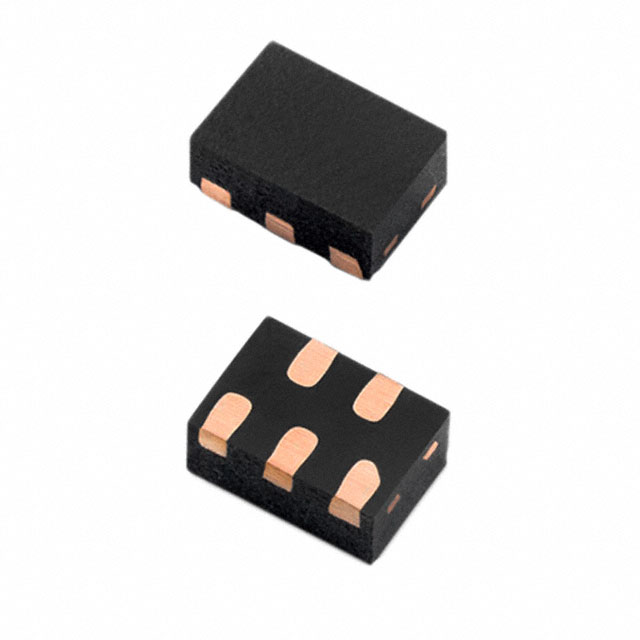

22kV 5V 2A 0.2pF TVS Diod 5FC-DFN

Part	Type	Applications	Mounting Type	Power Line Protection	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Package / Case	Capacitance @ Frequency	Unidirectional Channels [custom]
Littelfuse/Commercial Vehicle Products SP3422-04UTG	Steering	USB	Surface Mount		16.7 V	-40 °C	125 °C	5 V	5-DFN (1x0.6)	5-XFDFN	0.2 pF	4

Catalog

22kV 5V 2A 0.2pF TVS Diod 5FC-DFN

Key Features

• ESD, IEC61000-4-2, +22/-10kV contact, +22/-10kV air

• EFT, IEC61000-4-4, 40 A (tp = 5/50 ns)

• Lightning protection, IEC61000-4-5 2nd edition, 3A (tp=8/20μs)

• Low capacitance of 0.2pF (TYP) at 3GHz

• Low leakage current of 20nA (TYP) at 5V

• Moisture Sensitivity Level (MSL-1)

• Lead-free, halogen-free, and RoHS compliant

Description

The SP3422-04UTG integrates 4 channels of ultralow capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as V-by-One®, USB3.0, USB2.0, and IEEE 1394.
