628-7W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K

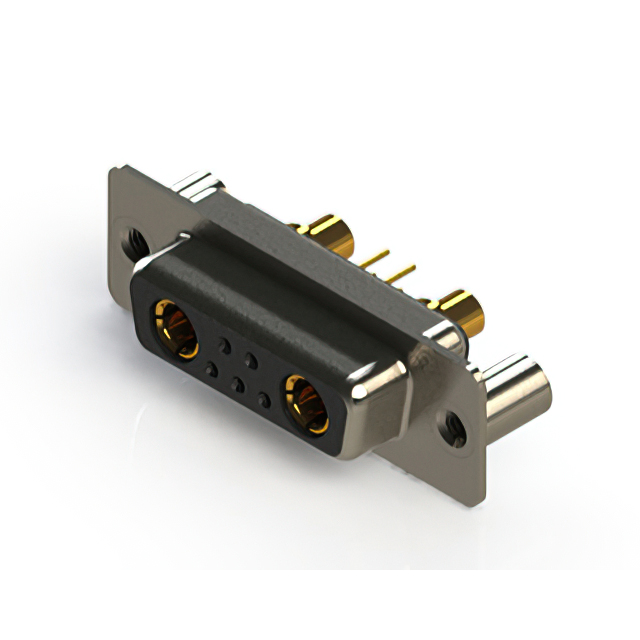

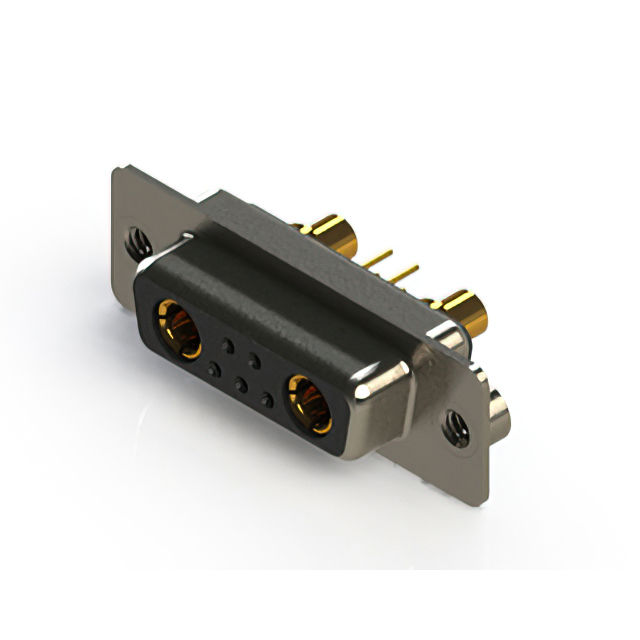

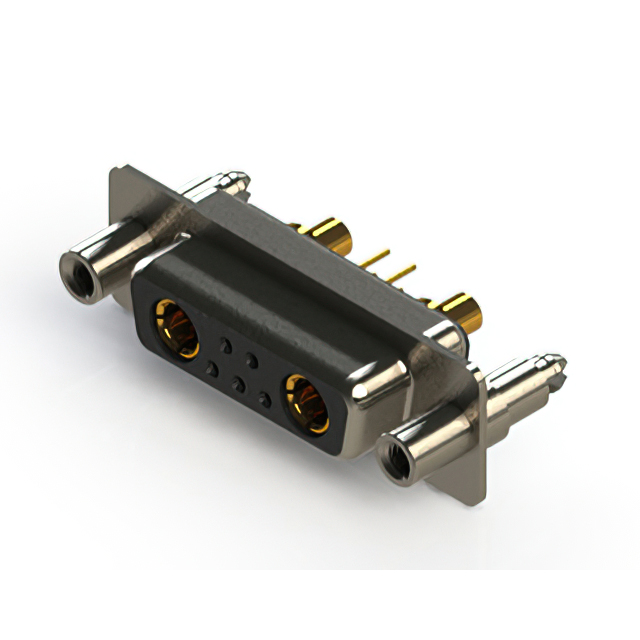

CONN D-SUB RCPT 7POS VERT SLDR
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Connector Style | Number of Rows [custom] | Features | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Shell Material, Finish | Material Flammability Rating | Termination | Mounting Type | Contact Finish | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

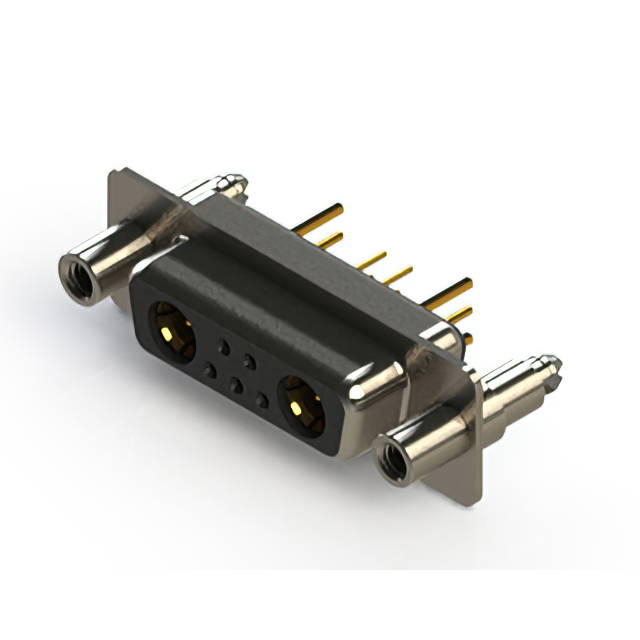

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Board Lock Shielded | 5 A 30 A | 30 Áin | 0.76 Ám | A DA | 2 | 7W2 | M3 | Receptacle Female Sockets | 7 | 5 | 2 | Nickel Plated Steel | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | ||||

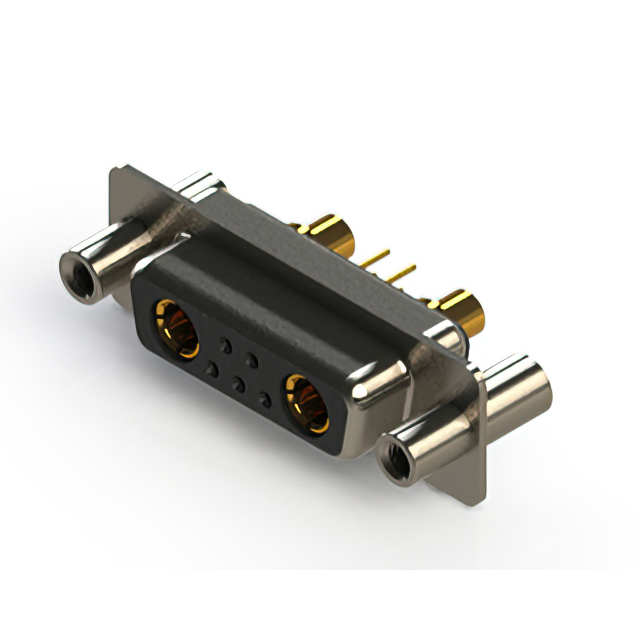

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Shielded | 30 Áin | 0.76 Ám | A DA | 2 | 7W2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | UL94 V-0 | Free Hanging (In-Line) | Gold | Coax Signal | 5 | 2 | ||||||||

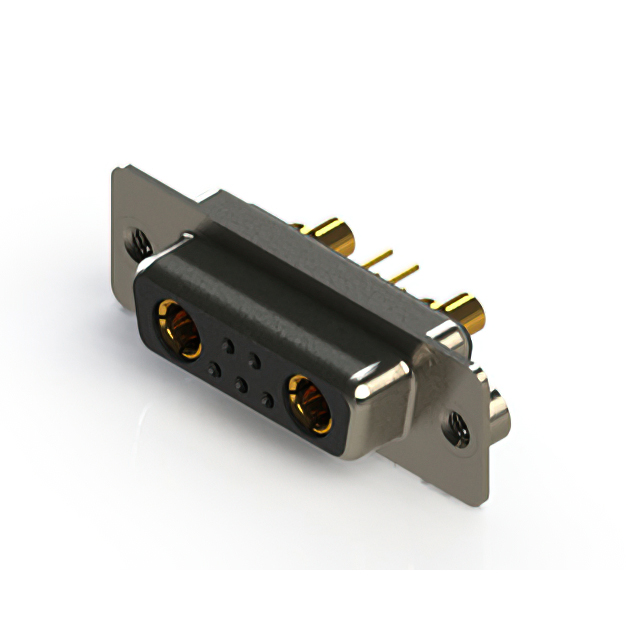

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Board Lock Shielded | A DA | 2 | 7W2 | 4-40 | Receptacle Female Sockets | Nickel Plated Steel | UL94 V-0 | Solder | Through Hole | Gold | Coax Signal | 5 | 2 | Flash | |||||||

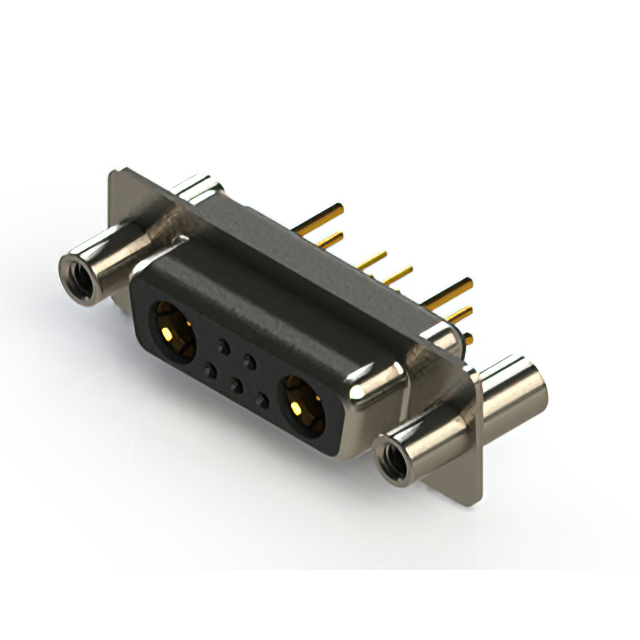

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Shielded | 5 A 40 A | A DA | 2 | 7W2 | Board Side (4-40) | Receptacle Female Sockets | 7 | 5 | 2 | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | Flash | ||||||

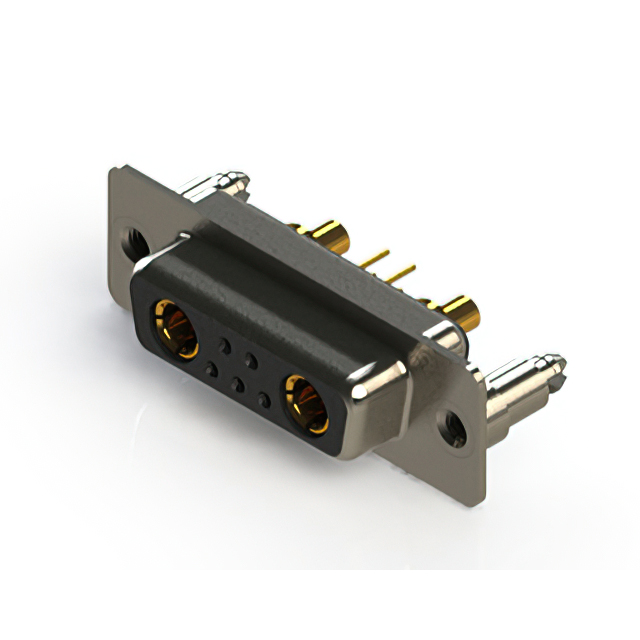

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Board Lock Shielded | 30 Áin | 0.76 Ám | A DA | 2 | 7W2 | Board Side (M3) | Receptacle Female Sockets | 7 | 5 | 2 | Nickel Plated Steel | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | 20A 5A | ||||

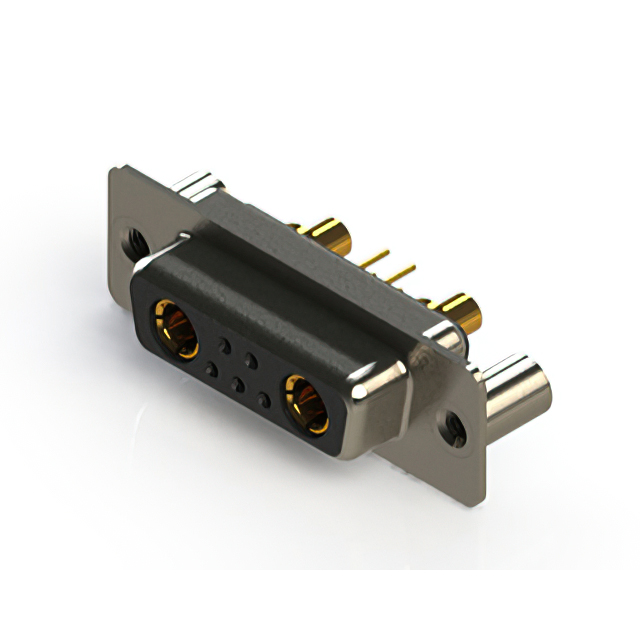

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Board Lock Shielded | 5 A 30 A | A DA | 2 | 7W2 | M3 | Receptacle Female Sockets | 7 | 5 | 2 | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | Flash | ||||||

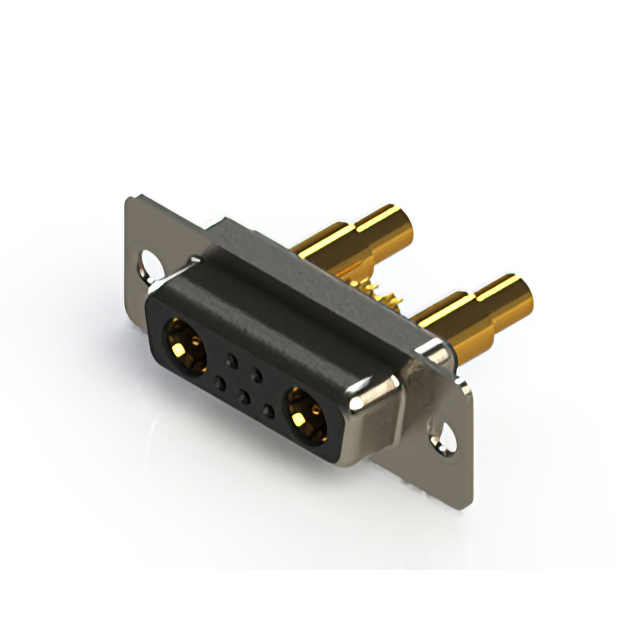

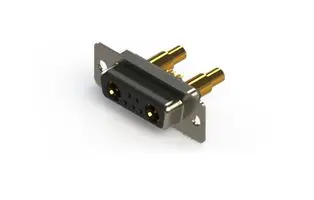

 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Shielded | 5 A 40 A | A DA | 2 | 7W2 | M3 | Receptacle Female Sockets | 7 | 5 | 2 | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | Flash | ||||||
 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Shielded | 5 A 30 A | 30 Áin | 0.76 Ám | A DA | 2 | 7W2 | Board Side (M3) | Receptacle Female Sockets | 7 | 5 | 2 | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | |||||
 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Board Lock Shielded | A DA | 2 | 7W2 | Board Side (M3) | Receptacle Female Sockets | Nickel Plated Steel | UL94 V-0 | Solder | Through Hole | Gold | Coax Signal | 5 | 2 | Flash | |||||||
 EDAC Inc. | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | Combo D-Sub | 2 | Shielded | 5 A 30 A | A DA | 2 | 7W2 | Board Side (M3) | Receptacle Female Sockets | 7 | 5 | 2 | UL94 V-0 | Solder | Through Hole | Gold | Signal and Power | Flash |
