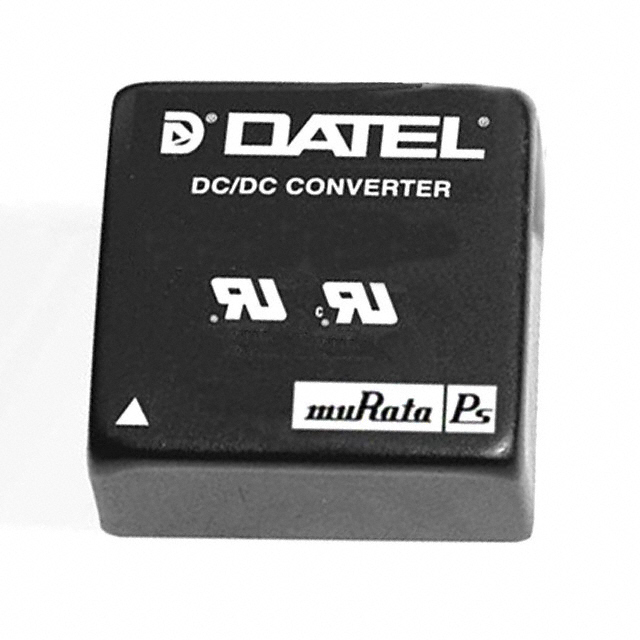

UWR-5 Series
Manufacturer: Murata Electronics
Beta
⌘K
DC DC CONVERTER 5V 40W
| Part | Applications | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Number of Outputs | Voltage - Isolation | Voltage - Input (Max) [Max] | Efficiency | Type | Voltage - Input (Min) [Min] | Power (Watts) | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | ITE (Commercial) | 8-DIP Module 7 Leads | 85 °C | -40 C | 8 A | 5 V | 1 | 1.5 kV | 36 V | 91.5 % | Isolated Module | 18 V | 40 W | Through Hole | 0.45 " 11.4 mm | 50.8 mm | 50.8 mm | |||
 Murata Electronics | ITE (Commercial) | 6-DIP Module 4 Leads | 85 °C | -40 C | 3 A | 5 V | 1 | 1.5 kV | 75 V | 88 % | Isolated Module | 36 V | 15 W | Through Hole | 12.1 mm | 50.8 mm | 25.4 mm | 1 " | 0.48 " | 2 in |
Murata Electronics | ITE (Commercial) | 8-DIP Module 7 Leads | 85 °C | -40 C | 8 A | 5 V | 1 | 1.5 kV | 75 V | 90 % | Isolated Module | 36 V | 40 W | Through Hole | 0.45 " 11.4 mm | 50.8 mm | 50.8 mm | |||
 Murata Electronics | ITE (Commercial) | 5-DIP Module | 70 °C | -40 C | 2 A | 5 V | 1 | 1.5 kV | 36 V | 85 % | Isolated Module | 18 V | 10 W | Through Hole | 9.7 mm | 50.8 mm | 25.4 mm | 1 " | 0.38 in | 2 in |
Murata Electronics | ITE (Commercial) | 6-DIP Module 5 Leads | 85 °C | -40 C | 3 A | 5 V | 1 | 1.5 kV | 36 V | 88 % | Isolated Module | 18 V | 15 W | Through Hole | 12.1 mm | 50.8 mm | 25.4 mm | 1 " | 0.48 " | 2 in |
 Murata Electronics | ITE (Commercial) | 6-DIP Module 4 Leads | 85 °C | -40 C | 3 A | 5 V | 1 | 1.5 kV | 36 V | 88 % | Isolated Module | 18 V | 15 W | Through Hole | 12.1 mm | 50.8 mm | 25.4 mm | 1 " | 0.48 " | 2 in |
Murata Electronics | ITE (Commercial) | 6-DIP Module 4 Leads | 85 °C | -40 C | 3 A | 5 V | 1 | 1.5 kV | 7.5 V | 79 % | Isolated Module | 4.7 V | 15 W | Through Hole | 12.1 mm | 50.8 mm | 25.4 mm | 1 " | 0.48 " | 2 in |
Murata Electronics | ITE (Commercial) | 6-DIP Module 4 Leads | 85 °C | -40 C | 3 A | 5 V | 1 | 1.5 kV | 18 V | 85 % | Isolated Module | 10 VDC | 15 W | Through Hole | 12.1 mm | 50.8 mm | 25.4 mm | 1 " | 0.48 " | 2 in |
Murata Electronics | ITE (Commercial) | 8-DIP Module 6 Leads | 65 °C | -40 C | 4 A | 5 V | 1 | 1.5 kV | 36 V | Isolated Module | 9 V | 20 W | Through Hole | 0.45 " 11.4 mm | 50.8 mm | 50.8 mm | ||||
Murata Electronics | ITE (Commercial) | 5-DIP Module | 70 °C | -40 C | 2 A | 5 V | 1 | 1.5 kV | 18 V | 81 % | Isolated Module | 9 V | 10 W | Through Hole | 9.7 mm | 50.8 mm | 25.4 mm | 1 " | 0.38 in | 2 in |
