DMCV Series

Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Through Hole Header

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Through Hole Header

Catalog

Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Through Hole Header

Part	Number of Levels	Header Orientation	Current - IEC	Type	Voltage - UL	Termination Style	Color	Features	Pitch	Pitch	Number of Positions	Voltage - IEC	Positions Per Level	Contact Mating Finish	Current - UL	Mounting Type	Housing Material	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 1845205	2	Vertical	6 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Solder Retention	0.1 "	2.54 mm	10	160 V	5	Gold	6 A	Surface Mount
Phoenix Contact 1787399	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Mating and Mounting Flange	0.138 "	3.5 mm	4	250 V	2	Tin	8 A	Through Hole	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	10 mm	0.394 "	UL94 V-0
Phoenix Contact 1845250	2	Vertical	6 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Solder Retention	0.1 "	2.54 mm	20	160 V	10	Gold	6 A	Surface Mount
Phoenix Contact 1845179	2	Vertical	6 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Solder Retention	0.1 "	2.54 mm	4	160 V	2	Gold	6 A	Surface Mount

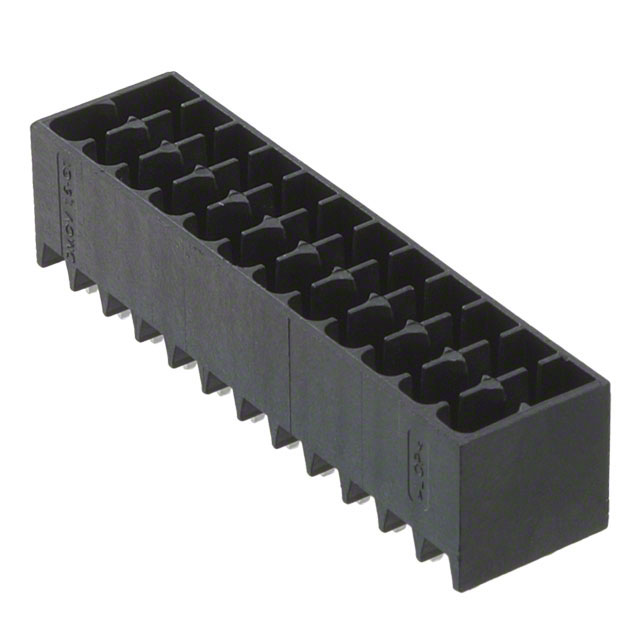

Phoenix Contact 1787302	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black		0.138 "	3.5 mm	24	250 V	12	Tin	8 A	Through Hole	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	10 mm	0.394 "	UL94 V-0

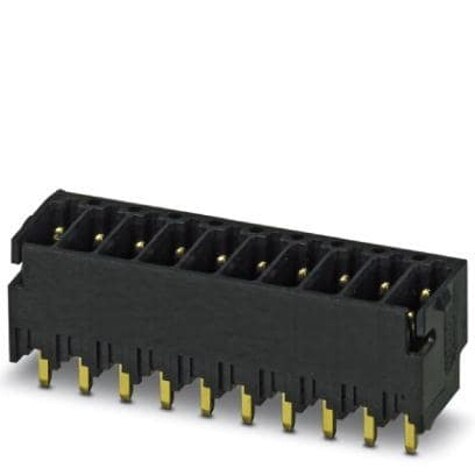

Phoenix Contact 1844963	2	Vertical	6 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Solder Retention	0.1 "	2.54 mm	22	160 V	11	Gold	6 A	Through Hole
Phoenix Contact 1874124	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	300 V	Solder	Black		0.138 "	3.5 mm	12	160 V	6	Tin	8 A	Through Hole							-40 C	100 °C
Phoenix Contact 1787315	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black		0.138 "	3.5 mm	26	250 V	13	Tin	8 A	Through Hole

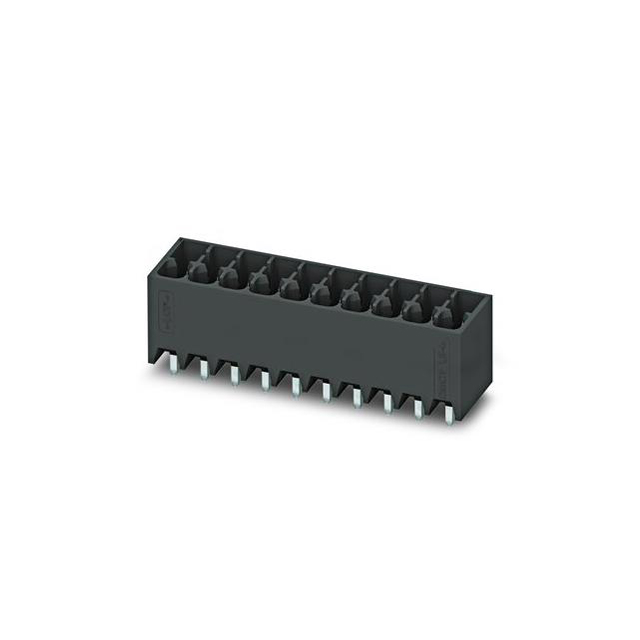

Phoenix Contact 1787331	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black		0.138 "	3.5 mm	30	250 V	15	Tin	8 A	Through Hole	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	10 mm	0.394 "	UL94 V-0
Phoenix Contact 1787412	2	Vertical	8 A	Header Male Pins Shrouded (4 Side)	150 V	Solder	Black	Mating and Mounting Flange	0.138 "	3.5 mm	8	250 V	4	Tin	8 A	Through Hole	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	10 mm	0.394 "	UL94 V-0
