90_MMCX-S50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

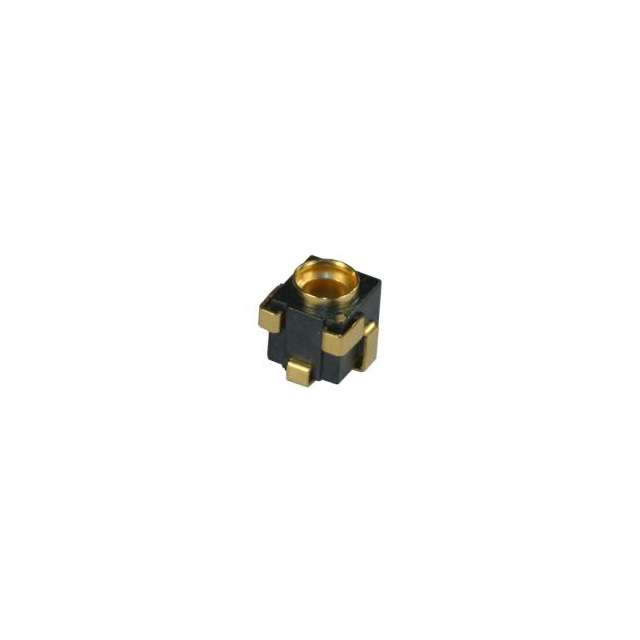

90_MMCX-S50-0-55/119_OE
| Part | Body Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Center Contact Plating | Connector Style | Impedance | Number of Ports | Frequency - Max [Max] | Shield Termination | Housing Color | Fastening Type | Center Contact Material | Contact Termination | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Liquid Crystal Polymer (LCP) | 170 V | 90 °C | -40 C | 500 | Gold | Gold | MMCX | 50 Ohms | 1 | 6000 MHz | Solder | Gold | Snap-On | Bronze | Solder | Surface Mount | Female Socket Jack |
