9101-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

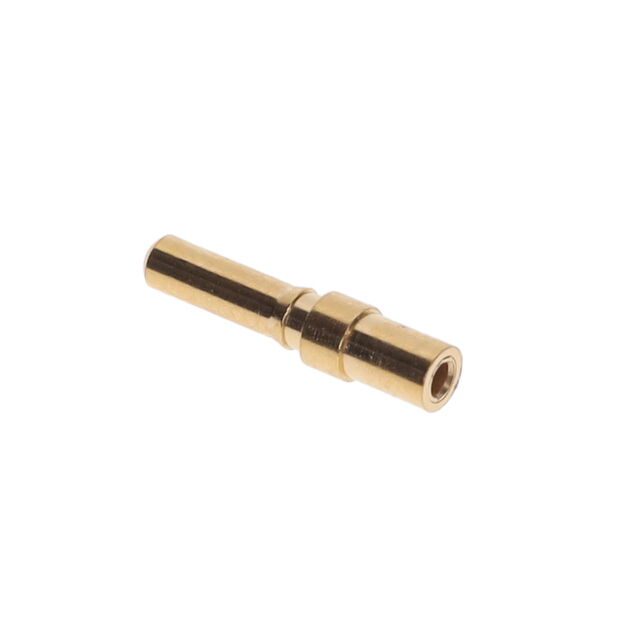

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Hole Diameter | Mounting Hole Diameter | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Socket Depth | Socket Depth | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Min] [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Square Pin Size | Accepts Square Pin Size | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.067 in | 1.7 mm | 0.031 in | 0.79 mm | 0.33 in | 8.38 mm | Press-Fit | Beryllium Copper | 0.25 Ám | 10 Áin | 9.53 mm | 0.375 in | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 2.18 mm | 0.086 in | 0.025 in | 0.64 mm | No Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.067 in | 1.7 mm | 0.051 in | 1.3 mm | 0.33 in | 8.38 mm | Press-Fit | Beryllium Copper | 0.76 Ám | 30 Áin | 9.53 mm | 0.375 in | 0.86 mm | 0.034 " | 0.022 " | 0.56 mm | 2.18 mm | 0.086 in | 0.025 in | 0.64 mm | No Tail |
