GSM90A15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

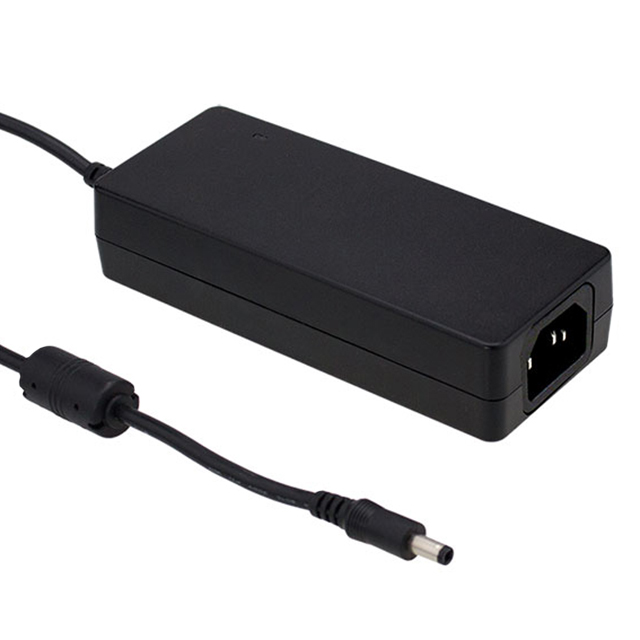

AC/DC DESKTOP ADAPTER 15V 90W
| Part | Polarization | Current - Output (Max) [Max] | Cord Length | Cord Length | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Output Connector [diameter] | Output Connector | Output Connector [x] | Voltage - Output | Applications | Form | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Region Utilized | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | No Load Power Consumption | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Positive Center | 6 A | 1 m | 39.4 in | 90 W | -30 ░C | 70 °C | Cord (Sold Separately) | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 15 V | Medical | Desktop (Class I) | Level VI | 145 mm | 5.71 " | 2.36 " | 1.26 " | 32 mm | 60 mm | International | 80 VAC | 264 VAC | CB CE cRUus TUV | 150 mW | IEC 320-C14 |
