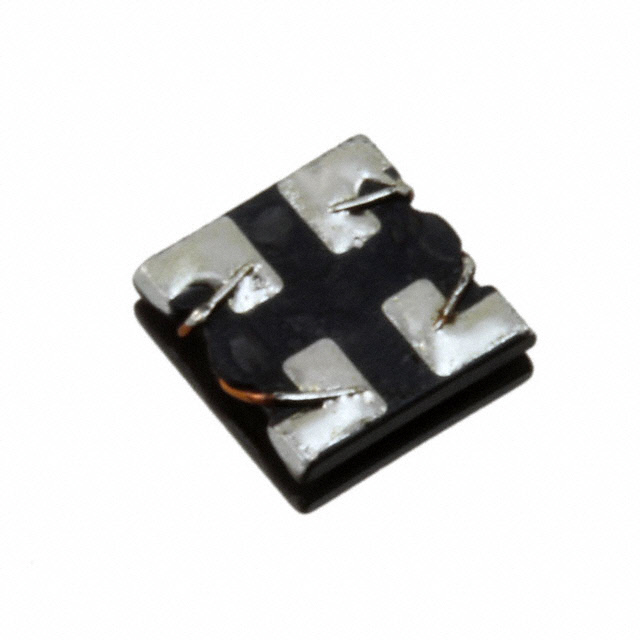

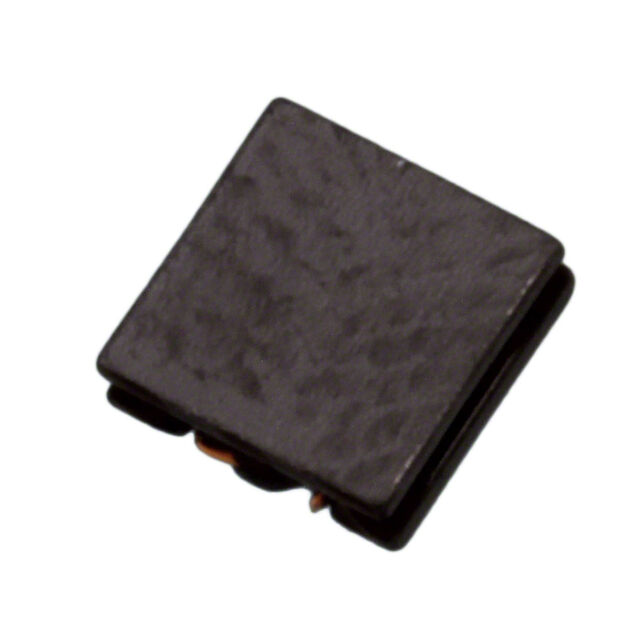

DLW44SN Series

Catalog

CMC 3.1A 100 OHM SMD

Part	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [y]	Package / Case	Impedance @ Frequency	Number of Lines	Height (Max) [z]	Height (Max) [z]	Filter Type	Mounting Type	Current Rating (Max) [Max]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max) [Max]
Murata Electronics DLW44SN101SK2L
Murata Electronics DLW44SN302SK2L	0.157 "	4 mm	0.157 in	4 mm	Horizontal 4 PC Pad	2200 Ohms	2	1.5 mm	0.059 in	Power Line	Surface Mount	1.1 A	60 VDC	-40 C	105 ░C	168 mOhm
Murata Electronics DLW44SN851SK2L	0.157 "	4 mm	0.157 in	4 mm	Horizontal 4 PC Pad	850 Ohms	2	1.5 mm	0.059 in	Power Line	Surface Mount	1.9 A	60 VDC	-40 C	105 ░C	56 mOhm
