5400FE Series
Manufacturer: Belden Inc.
Beta
⌘K

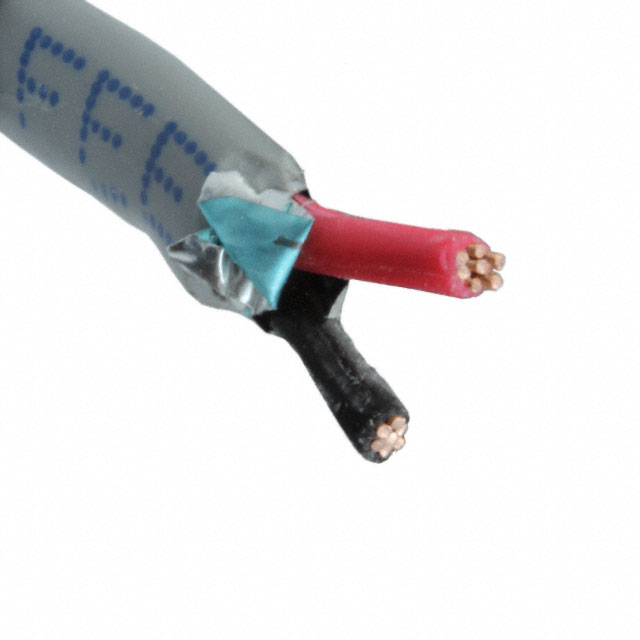

MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 2 CONDUCTOR, 20 AWG, 0.514 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Number of Conductors | Length [x] | Length [x] | Length | Length | Wire Gauge | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Usage | Conductor Material | Ratings | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) Riser | Polypropylene (PP) | 0.017 " | 0.432 mm | Drain Wire Rip Cord | 2 | 100 ft | 30.5 m | 15.24 m 152.4 m | 50 ft 500 ft | 20 AWG | Foil | Multi-Conductor | 0.142 in | 3.61 mm | 28 AWG | 7 | Gray | Commercial Audio | Copper Bare | ||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) Riser | Polypropylene (PP) | 0.017 " | 0.432 mm | Rip Cord | 2 | 152.4 m | 500 ft | 20 AWG | Foil | Multi-Conductor | 0.142 in | 3.61 mm | 28 AWG | 7 | Gray | Security Sound | Copper Bare | UL Style CMR | 300 VDC | ||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) Riser | Polypropylene (PP) | 0.017 " | 0.432 mm | Rip Cord | 2 | 304.8 m | 1000 ft | 20 AWG | Foil | Multi-Conductor | 0.142 in | 3.61 mm | 28 AWG | 7 | Gray | Security Sound | Copper Bare | UL Style CMR | 300 VDC |
