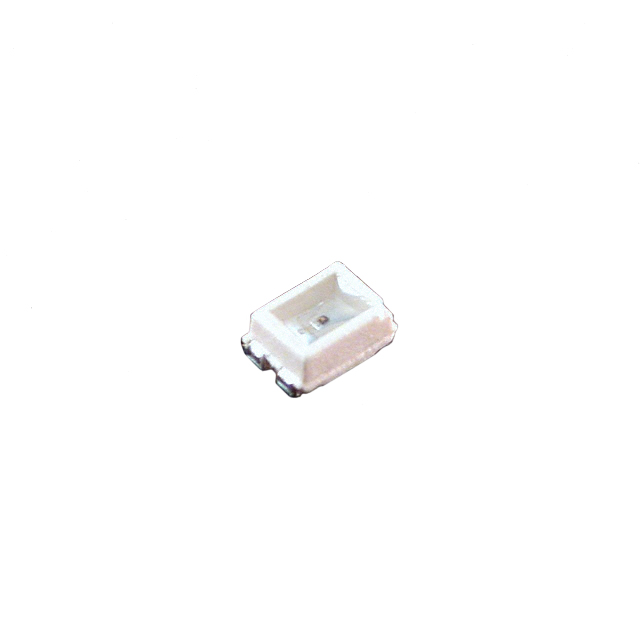

AA3020 Series

Catalog

LED BLUE CLEAR SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Wavelength - Peak	Height (Max) [Max] [z]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Package / Case	Current - Test	Lens Color	Millicandela Rating	Viewing Angle	Color	Mounting Type	Lens Style

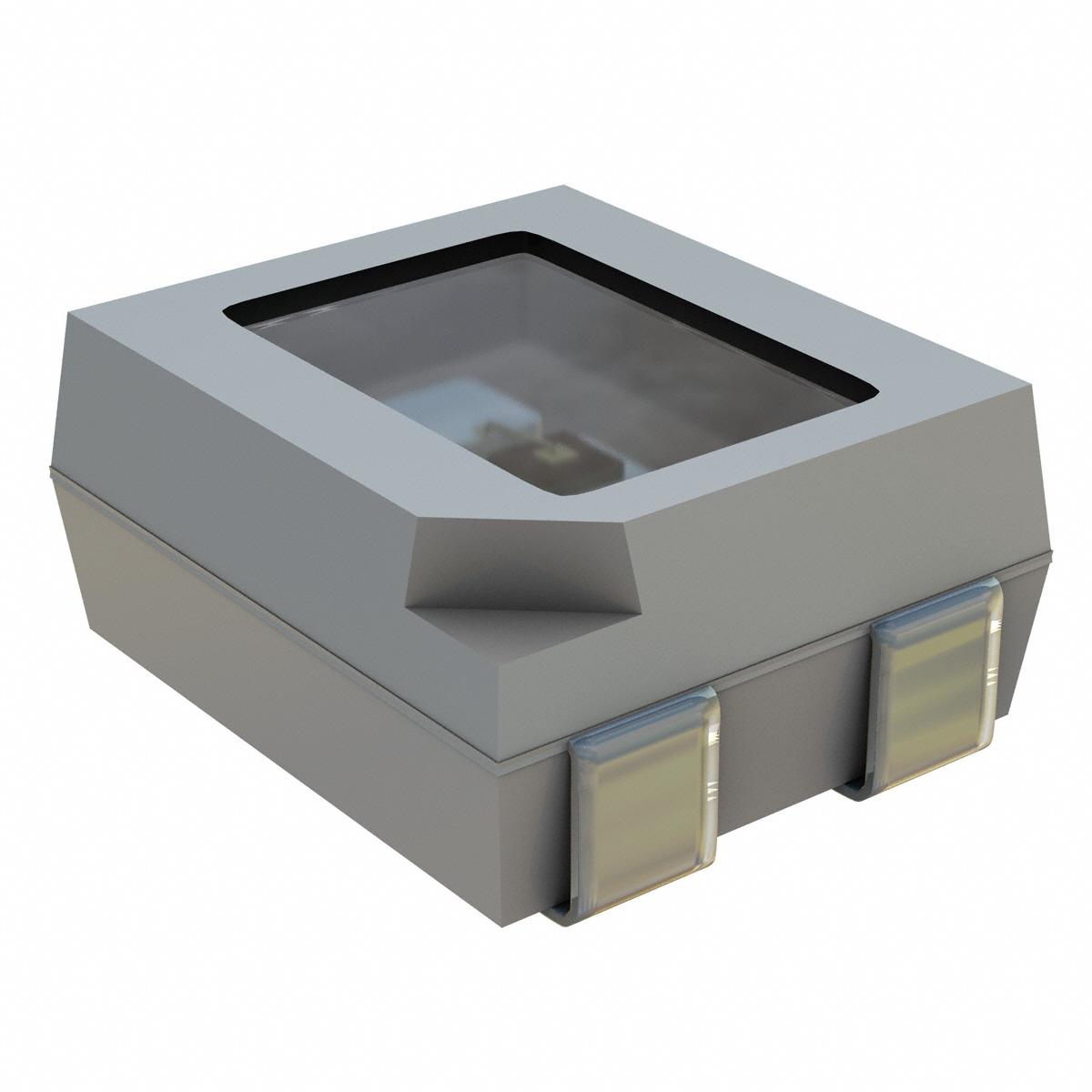

Kingbright AA3020AQBC/D	2.7 mm	2 mm	SMD	468 nm	1.65 mm	Clear	3.3 V	Standard	470 nm	1.4 mm	2 mm	2-SMD J-Lead	20 mA	Colorless	160 mcd	90 °	Blue	Surface Mount	Rectangle with Flat Top
Kingbright AA3020AYC	2.7 mm	2 mm	SMD	590 nm	1.65 mm	Clear	2.1 V	Standard	588 nm	1.4 mm	2 mm	2-SMD J-Lead	20 mA	Colorless	15 mcd	90 °	Yellow	Surface Mount	Rectangle with Flat Top
Kingbright AA3020APBC/A	2.7 mm	2 mm	SMD	468 nm	1.65 mm	Clear	3.2 V	Standard	470 nm	1.4 mm	2 mm	2-SMD J-Lead	20 mA	Colorless	60 mcd	90 °	Blue	Surface Mount	Rectangle with Flat Top
Kingbright AA3020ASURCK	2.7 mm	2 mm	SMD	650 nm	1.65 mm	Clear	1.95 V	Standard	630 nm	1.4 mm	2 mm	2-SMD J-Lead	20 mA	Colorless	200 mcd	90 °	Red	Surface Mount	Rectangle with Flat Top
