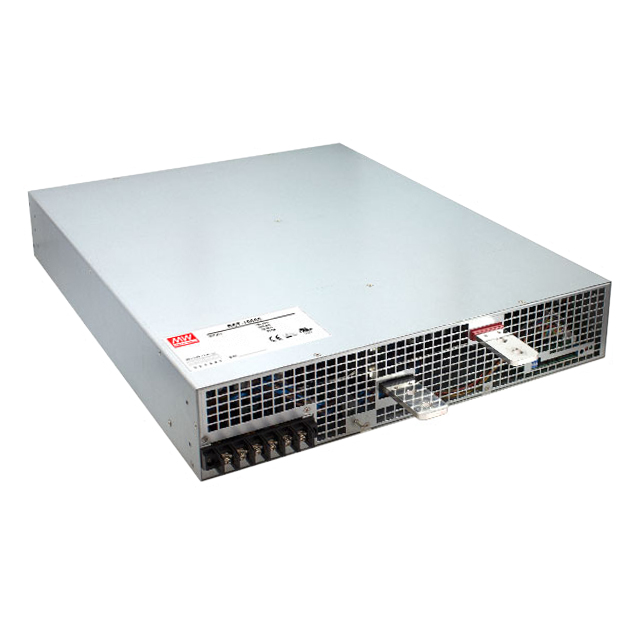

RST-10000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 36V 9936W
| Part | Minimum Load Required | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Number of Outputs | Type | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 [custom] | Power (Watts) | Features | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Applications | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 90 % | 196 VAC 340 VAC | 305 VAC 530 VAC | Chassis Mount | 1 | Enclosed | CB CE cURus TUV | 424 mm | 540 mm | 21.26 in | 16.69 in | 83.5 mm | 3.29 " | 36 V | 9936 W | Adjustable Output PFC Remote On/Off | 276 A | -30 °C | 70 °C | 3000 V | ITE (Commercial) | ||
MEAN WELL USA Inc. | 91 % | 196 VAC 340 VAC | 305 VAC 530 VAC | Chassis Mount | 1 | Enclosed | CB CE cURus TUV | 424 mm | 540 mm | 21.26 in | 16.69 in | 83.5 mm | 3.29 " | 10080 W | Adjustable Output PFC Remote On/Off | 210 A | -30 °C | 70 °C | 3000 V | ITE (Commercial) | 48 V |
