109BM24 Series

Catalog

BLOWERS & CENTRIFUGAL FANS DC BLOWER, 97X33MM, 24VDC

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	RPM	Air Flow	Air Flow	Noise	Power (Watts)	Static Pressure	Static Pressure	Approval Agency	Weight	Weight	Width	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Fan Type	Termination	Features

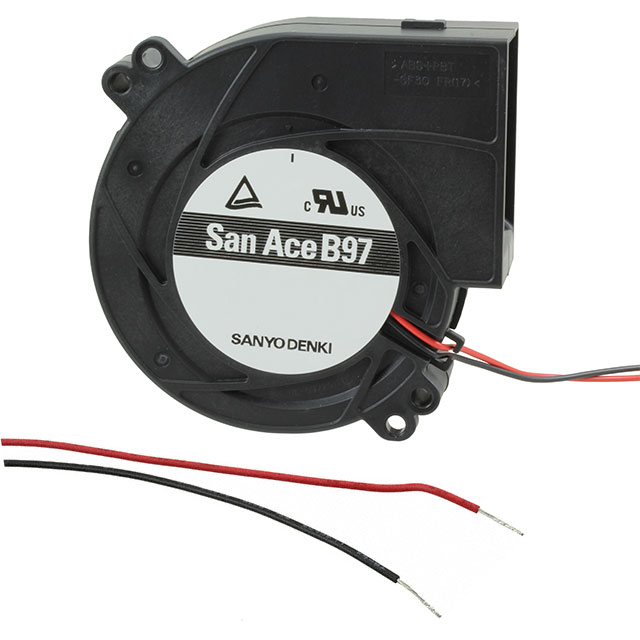

Sanyo Denki America Inc. 109BM24HA2-1	12	27.6 VDC	Plastic	40000 Hrs	Plastic	0.26 A	Ball	-20 ░C	70 °C	24 VDC	3300 RPM	0.703 m³/min	25.1 CFM	48.5 dB(A)	6.24 W	204 Pa	0.819 in H2O	CSA TUV UL	175.09 g	0.386 lb	33 mm	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	2 Wire Leads

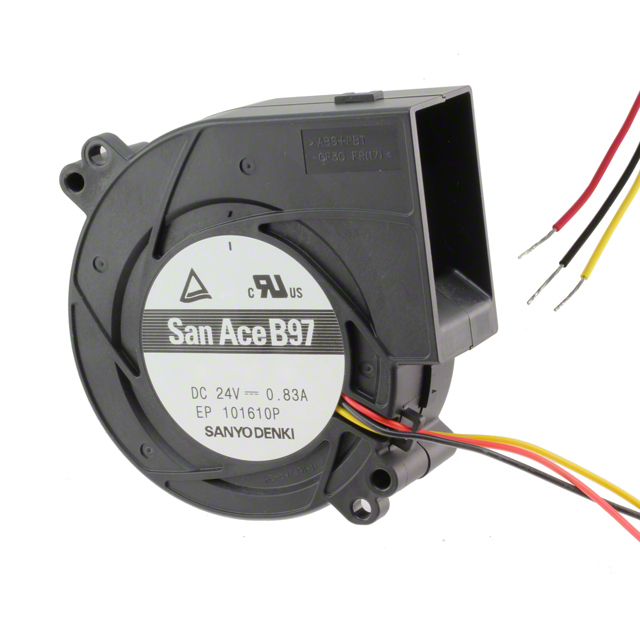

Sanyo Denki America Inc. 109BM24MC2-1	12	27.6 VDC	Plastic	40000 Hrs	Plastic	150 mA	Ball	-20 ░C	70 °C	24 VDC	2700 RPM	0.574 m³/min	20.5 CFM		3.6 W	119.1 Pa	0.478 in H2O	CSA TUV UL	175.09 g	0.386 lb	33 mm	94.4 mm	Rectangular/Rounded	97.2 mm	Blower	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BM24MA2-1	12	27.6 VDC	Plastic	40000 Hrs	Plastic	150 mA	Ball	-20 ░C	70 °C	24 VDC	2700 RPM	0.574 m³/min	20.5 CFM		3.6 W	119.1 Pa	0.478 in H2O	CSA TUV UL	175.09 g	0.386 lb	33 mm	94.5 mm	Rectangular/Rounded	97.2 mm	Blower	2 Wire Leads
