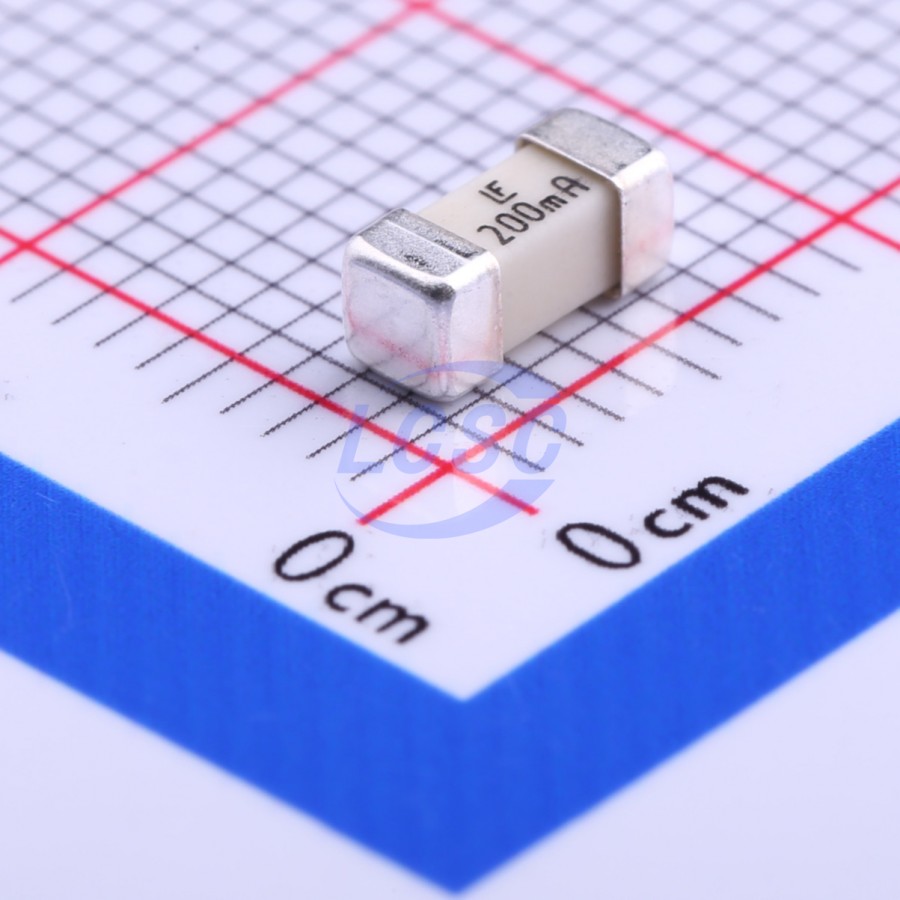

FUSE 125V V/FA NANO2 RoHS .200A
FUSE 125V V/FA NANO2 RoHS .200A
| Part | DC Cold Resistance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Package / Case | Fuse Type | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Approval Agency | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Melting I²t | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.8372 Ohms | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | 2-SMD Square End Block | Board Mount (Cartridge Style Excluded) | 50 A | 125 V | CSA UL | 0.2 A | Surface Mount | -55 C | 125 °C | 125 VDC | 0.0089 | Fast Blow |
