PA-120 Series

Catalog

BATT CHARGER ENCLOSED 27.6V 4.3A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Weight	Mounting Type	Battery Cell Size	Charge Current - Max [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Features	Termination Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power - Max [Max]	Battery Chemistry	Type	Number of Cells	Voltage - Nominal

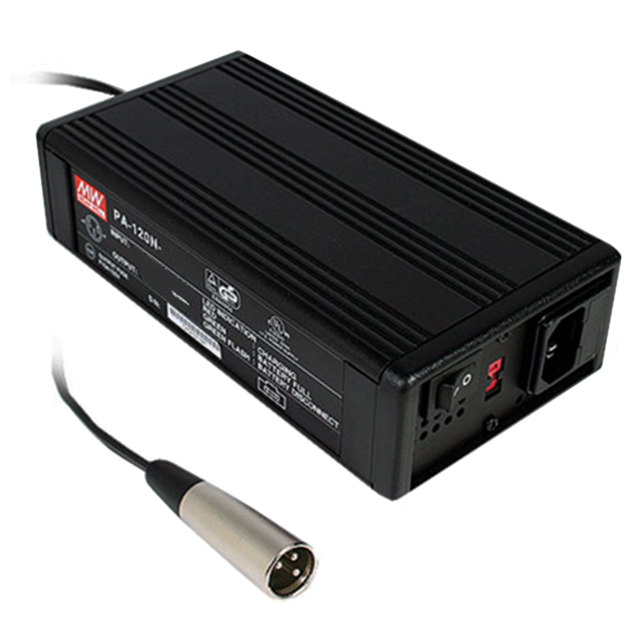

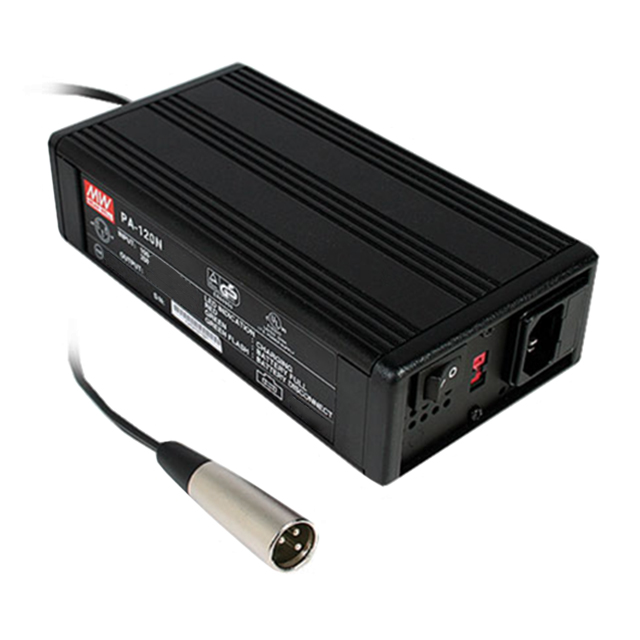

MEAN WELL USA Inc. PA-120N-27C	45 °C	-10 °C	CB cULus GS	1100 g	Desktop	24 V	4.3 A	132 VAC 264 VAC	88 VAC 176 VAC	LED Indicator	XLR 3 Pin	96 mm	1.93 in	7.09 in	180 mm	3.78 in	49 mm	118.68 W	Lead Acid	Enclosed	1	27.6 V

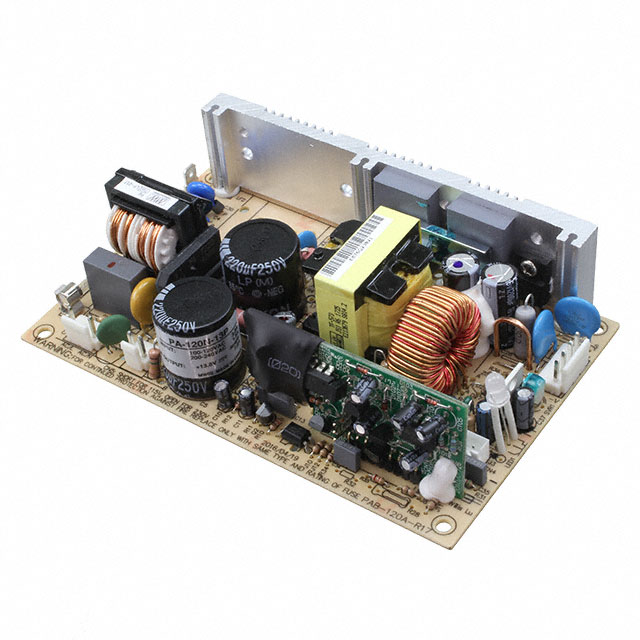

MEAN WELL USA Inc. PA-120N-54P	45 °C	-10 °C	CB CE cULus GS	1100 g	Chassis Mount	54 V	2.2 A	132 VAC 264 VAC	88 VAC 176 VAC	LED Indicator	Rectangular Connector	90 mm	1.3 in	5.67 "	144 mm	3.54 in	33 mm	121.44 W	Lead Acid	Open Frame	1	55.2 V
MEAN WELL USA Inc. PA-120N-13P	45 °C	-10 °C	CB CE cULus GS	1100 g	Chassis Mount	12 V	7.2 A	132 VAC 264 VAC	88 VAC 176 VAC	LED Indicator	Rectangular Connector	90 mm	1.3 in	5.67 "	144 mm	3.54 in	33 mm	99.36 W	Lead Acid	Open Frame	1	13.8 V
